UNIC URW-506 – Mini Spider Crane

Capacity: 3t x 3.4m

Capable of lifting 3 tonnes to a height of 3.4 m, or up to 4 tonnes with an optional 5 fall hook block, the URW-506 gives more capacity and better choice for your lifting needs. The UNIC URW-506 delivers a generous 16m maximum lifting height, whilst an optional 700kg capacity fly jib gives a further reach of 1790mm. A 500kg searcher hook is also available for working under soffits and overhangs. This mini crane can still fit through a double doorway but can also be disassembled and rebuilt in confined or remote locations using the crane’s own winch.

The URW-506 includes radio remote control and a safe load indicator that enables the operator to set a working area limitation for better control in sensitive environments. The Lift-Smart Advanced Safety System also includes overwinding alarm, computer controlled intelligent voice warning system, intelligent throttle activation and audio-visual warning device.

We also hire and sell a range of below-the-hook vacuum lifters that complement the UNIC mini crane range. Training is available on all of our mini crane models.

If you are looking to hire or purchase a UNIC URW-506, or require any further information, contact GGR Group today.

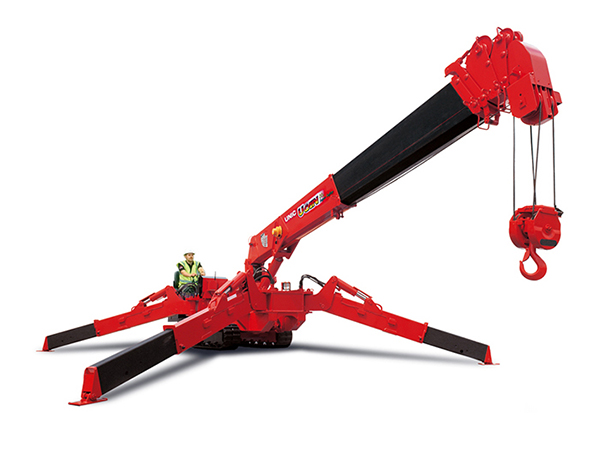

UNIC URW-506 mini spider crane
  • Capacity 3.0t x 3.4m
  • Total width 1.4m
  • Max working radius 15.52m
  • Max lifting height 16m (17.79m with fly jib, 18.46m with searcher hook)
  • Max boom length 15.71m
  • Diesel powered and optional mains electric
  • Zero length increase with electric option
  • Operator control of outrigger extension
  • Radio remote control as standard
  • Working area limitation
  • Slew limitation (optional)
  • Intelligent throttle activation for economy and ecology
  • Optional low marking tracks
  • Optional radio remote control with feedback display
  • Maximum wind speed for safe use is 36km/h, 22mph or 10m/s


Ref: MCU506
