GANTERUD LEVELLING YOKES

Contact Us

Book Your FREE On-Site Demonstration

See how Ganterud Levelling Yokes could improve control, safety and installation efficiency on your own site.

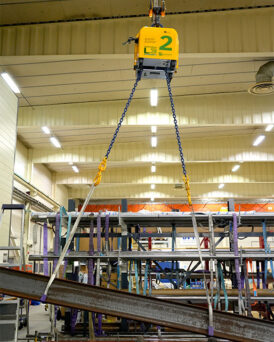

Ganterud-L3 Load Balancer

Ganterud L3

Capacity: 3,000kg
Max Chain Angle: 60°
Weight: 126kg
Reference: L3

Ganterud-Levelling-Yokes

Ganterud L5

Capacity: 5,000kg
Max Chain Angle: 60°
Weight: 130kg
Reference: L5

Ganterud L5 Pro

Capacity: 5,000kg
Max Chain Angle: 60°
Weight: 130kg
Reference: L5 Pro

Ganterud L12 Pro

Capacity: 12,000kg
Max Chain Angle: 60°
Weight: 295kg
Reference: L12 Pro

Ganterud L20-3 Pro

Capacity: 20,000kg
Max Chain Angle: 60°
Weight: 395kg
Reference: L20-3 Pro

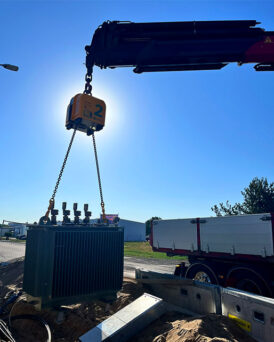

Ganterud levelling yokes are specialist lifting attachments designed to automatically balance and level loads during lifting operations. Commonly used with cranes, they help maintain control and stability when handling uneven or offset loads across construction, infrastructure, and industrial projects.

Read more

Ideal for applications where precision and load control are critical, Ganterud levelling yokes reduce manual adjustment and improve lifting efficiency, making them a reliable solution for complex lifting tasks in both standard and restricted-access environments.

Ganterud levelling yokes are engineered to automatically adjust and maintain load balance throughout the lifting process, helping to eliminate the need for manual repositioning or secondary adjustments. By keeping the load level, they improve safety, reduce the risk of load shift, and allow for more controlled placement—particularly when working with irregular, heavy, or sensitive materials.

They are widely used across construction, infrastructure, precast concrete, steel installation, and industrial projects where accurate positioning is essential. Whether lifting beams, panels, or structural elements, levelling yokes help ensure loads remain stable from lift to placement, even when the centre of gravity is not evenly distributed.

The correct levelling yoke will depend on factors such as load weight, dimensions, lifting points, and the degree of imbalance within the load. Selecting the appropriate configuration is key to achieving safe and efficient lifting operations, particularly in complex or high-precision environments.

GGR Group supplies Ganterud levelling yokes for a wide range of applications across the UK, supporting both hire and purchase requirements. As a specialist lifting solutions provider, we help customers identify the most suitable equipment for their project, improving lifting control, reducing manual handling risks, and supporting safer, more efficient site operations.

Frequently Asked Questions

What is a levelling yoke?

A levelling yoke is a crane-suspended, motorised load-balancing beam that shifts the centre of gravity (via wireless remote) to keep loads level for precise placement.

What lifting capacity do GGR Group's levelling yokes have?

3–20 tonnes, depending on model — for example L3 (3,000 kg), L5 (5,000 kg) L12 Pro (12000kg) and L20-3 Pro (20,000 kg)

Can I hire or purchase a Ganterud levelling yoke?

Yes. GGR Group offers Ganterud levelling yokes for hire or purchase as a UK distributor.

What can levelling yokes lift?

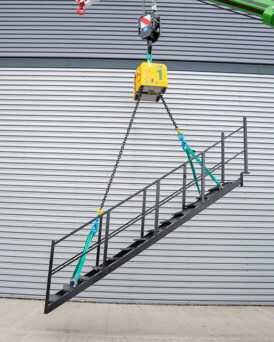

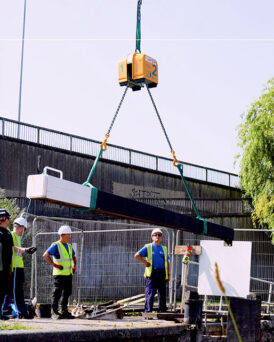

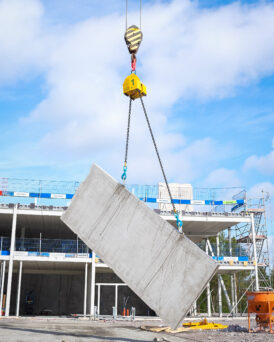

Levelling yokes lift imbalanced, awkward items such as precast concrete walls and stair units, steel structures, and beams/roof trusses, even niche loads like canal lock balance beams, keeping them level for precise placement

What is the max levelling length of Ganterud levelling yokes?

Up to 6 metres, on the L20-3 Pro, which provides 3 metres in each direction (total 6 m). For context, the L12 Pro offers 4 metres (2 m each way)

What industries are levelling yokes used in?

Levelling yokes are used in: construction/precast (walls, stairs), structural steel/roof trusses, civil engineering & infrastructure (bridges), and marine/waterways & flood-defence projects (quays, canals)..

Can I use a levelling yoke in combination with other lifting solutions?

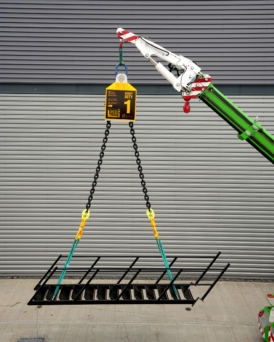

Yes. Levelling yokes are designed to hang from a crane hook and be used with a crane or other lifting equipment—including UNIC mini spider cranes—via appropriate slings/shackles to the load’s lifting points.

Are Ganterud levelling yokes battery-powered?

Yes. Ganterud levelling yokes are battery-powered. All models use rechargeable batteries with a status indicator.

What makes Ganterud levelling yokes better than traditional levelling methods?

Ganterud levelling yokes outperform traditional methods with remote, precise load control, automatic centre-of-gravity detection, long levelling travel, high capacities, battery power, and fewer re-slinging steps—making lifts faster, safer, and more accurate with reduced crane time.
