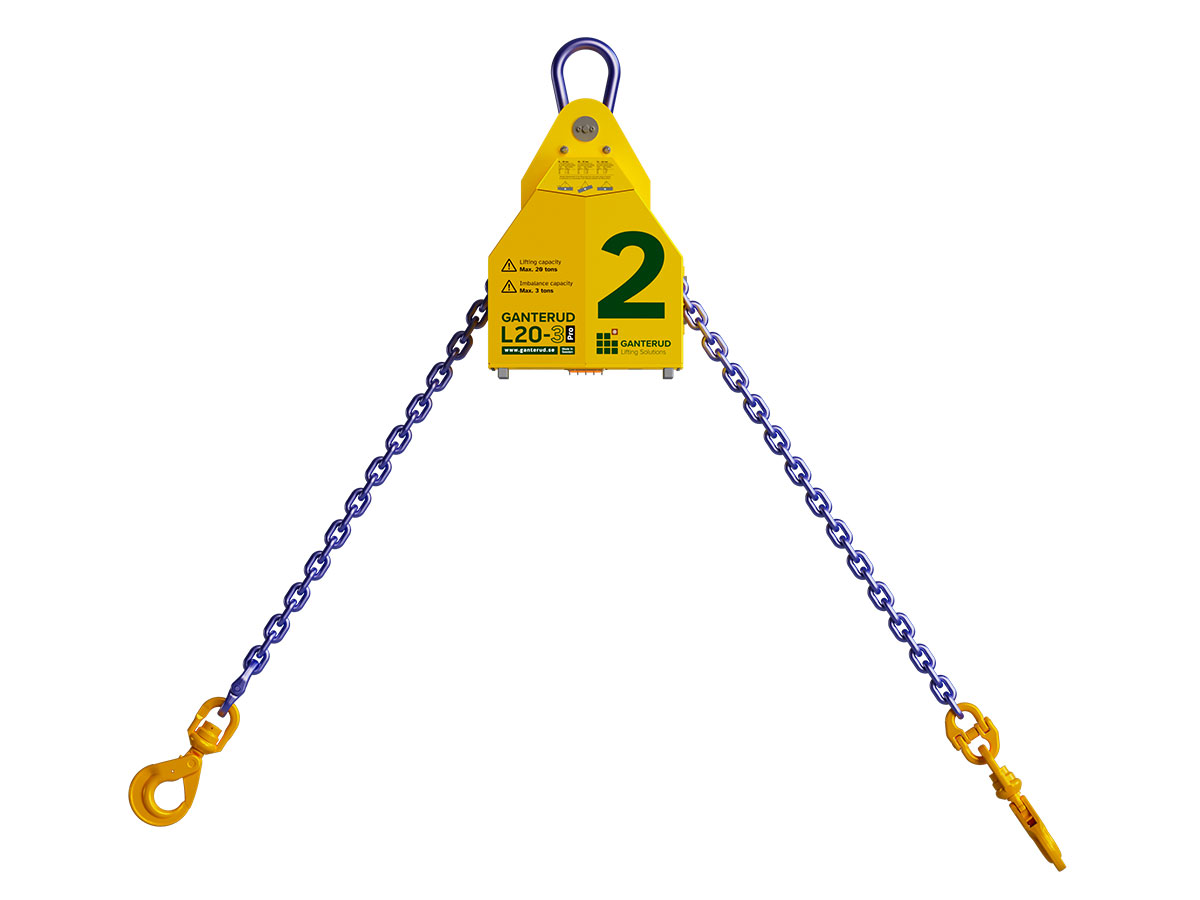

Ganterud L20-3 Pro – Auto-Levelling Yoke
Capacity: 20,000kg
The Ganterud L20-3 Pro is a high-performance levelling yoke built to deliver precision handling for both light and heavy loads up to 20 tonnes. Designed for safe, efficient lifting across a wide range of applications, this innovative system combines automatic levelling, robust engineering, and intuitive control to transform how loads are managed on site.
Its advanced auto-levelling function automatically detects the centre of gravity, allowing operators to lift and balance objects with ease, even when working with imbalanced loads up to 3 tonnes. When the chain wheel is released, the built-in snatch block function enables controlled rotation of large items such as precast concrete panels, improving both safety and efficiency.
With a reversible chain offering a maximum levelling length of 3 metres per hook and a 60° maximum chain angle, the Ganterud L20-3 Pro offers the flexibility needed for demanding lifts. Chain length is adjustable, making it adaptable to a variety of lifting scenarios, from confined construction sites to larger-scale industrial projects.
By levelling loads with the push of a button, this system significantly reduces crane time and wait periods, cutting down on operational costs and boosting productivity. The radio-controlled operation allows users to control the yoke from up to 100 metres away, with a user-friendly handheld remote rated to IP67 for reliability in all weather conditions.
Built to perform in tough environments, the Ganterud L20-3 Pro operates in temperatures ranging from -20°C to +40°C. Its IP65-rated electrical components and welded casing ensure long-term durability and easy cleaning. Minimal maintenance is required, with only weekly battery charging needed—battery status is conveniently displayed on the yoke itself.
Are you looking to hire or purchase the Ganterud L20-3 Pro Auto-Levelling Yoke, or require any further information?
