Mini Crawler Cranes

Crawler Crane Hire

Mini crawler cranes are compact lifting machines designed to combine high lifting capacity with the ability to travel across rough terrain and confined sites. Used across construction, infrastructure, glazing, and industrial applications, they provide a versatile solution where larger cranes cannot access and stability is essential.

Read more

Mini crawler cranes are widely used for lifting and transporting loads in environments where space is restricted and ground conditions are challenging. Their tracked undercarriage provides stability and mobility, allowing them to travel over uneven terrain and operate safely on sites where wheeled cranes may be unsuitable.

They are commonly used across construction, civil engineering, rail, utilities, and industrial applications for lifting steelwork, plant, glass, and other materials. Whether working outdoors on rugged ground or within congested sites, mini crawler cranes offer controlled lifting and the ability to manoeuvre loads into position with precision.

The most suitable mini crawler crane will depend on factors such as lifting capacity, working radius, site access, and ground conditions. Smaller models are ideal for restricted-access environments, while larger machines offer increased lifting performance and reach for more demanding applications.

GGR Group supplies mini crawler cranes for a wide range of applications across the UK, supporting both hire and purchase requirements. With a focus on compact lifting solutions, we help customers select the most suitable equipment for their project, improving efficiency and supporting safer lifting operations.

T-Crane 1060 Mini Crawler Crane

Capacity: 990kg
Max Lifting Height: 7.7m
References: TCR 1.0 D / TCR 1.0 E

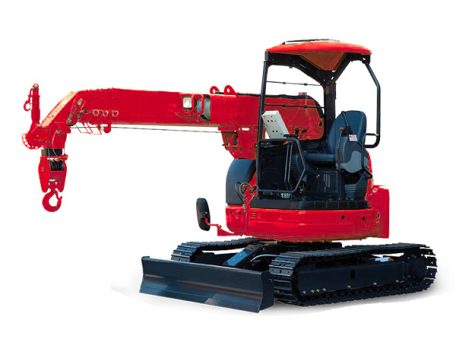

Mini Crawler Crane MCC383

Capacity: 2.93t x 1.5m
Max. Lifting Height: 9.3m
Max. Working Radius: 8.38m
Reference: MCC383

Mini Crawler Crane MCC294

Capacity: 2.9t x 1.5m
Max. Lifting Height: 10.6m
Max. Working Radius: 9.35m
Reference: MCC294

MCC495 Mini Crawler Crane For Hire & Sale

Mini Crawler Crane MCC495

Capacity: 4.9t x 2.1m
Max. Lifting Height: 16.35m
Max. Lifting Radius: 14.52m
Reference: MCC495

MCC500D Sunward Crawler Crane

Mini Crawler Crane MCC500D

Capacity: 5.0t x 2.1m
Max. Lifting Height: 16.5m
Max. Lifting Radius: 14.53m
Reference: MCC500D

MCC505 Telescopic Crawler Crane

Mini Crawler Crane MCC505

Capacity: 4.9t x 2.1m
Max.Lifting Height: 16.2m
Max.Lifting Radius: 15.18m
Reference:MCC49

Mini Crawler Crane MCC804

Mini Crawler Crane MCC804

Capacity: 8t x 2.5m
Max.Lifting Height: 13.7m
Max.Lifting Radius: 13.2m
Reference: MCC80B

Mini Crawler Crane MCC805

Mini Crawler Crane MCC805

Capacity: 8t x 3.5m
Max.Lifting Height: 20.5m
Max.Lifting Radius: 18.5m
Reference: MCC80-3

Mini Crawler Crane MCC1005

Mini Crawler Crane MCC1005

Capacity: 10.0t x 2.0m
Max.Lifting Height: 25m
Max.Lifting Radius: 21m
Reference: MCC1005

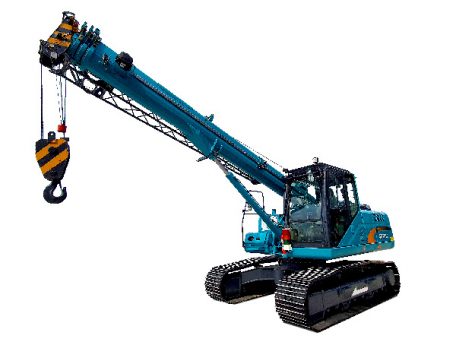

Mini Crawler Crane MCC1004

Capacity: 10.0t x 2.5m
Max. Lifting Height: 21.5m
Max. Working Radius: 19m
Reference: SWTC10

Hook Monitoring System

Lens Angle: 113°
Operating Time: Up to 12 Hrs
Resolution: 1080p
Reference: MRC01

WR-3 Plus Wireless Anemometer

Site-ready wind monitoring
500m transmission range
Reference: WSK01

Frequently Asked Questions

What lifting capacities do GGR Group's mini crawler cranes benefit from?

Capacity range: from 990 kg (T-Crane 1060) up to 10 tonnes (MCC1004/MCC1005), depending on model plus mid-range options at 2.9–8 tonnes (MCC294/383/495/500D/505/804/805).

What height can GGR's mini crawler cranes lift to?

 Up to 25 metres. Depending on model, maximum lifting height ranges from 7.7 m (T-Crane 1060) to 21.5 m—or 25 m with the optional fly jib on the MCC1005.

What are mini crawler cranes used for?

 Mini crawler cranes are used to lift and place loads where access is tight or terrain is rough, indoors or outdoors. Typical jobs include cladding installation, machinery lifting, steelwork, piling/shuttering, concrete and civil works (e.g., flood gates) and more.

Does GGR Group offer mini crawler crane training courses?

 Yes. GGR Group offers the CPCS A66D (360° Pick & Carry Crane) course for mini crawler cranes—2–5 days depending on experience—with theory, hands-on training and CPCS testing across the UK.

How compact are GGR Group's mini crawler cranes?

 Very compact. GGR’s mini crawler cranes are as narrow as 1.35 m stowed. Typical widths: 2.0 m (MCC294), 2.35 m (MCC495), and heavy-duty models around 2.8 m (MCC1004). Ideal for restricted-access sites.

What is the max working radius of GGR Group's mini crawler cranes?

 Up to 18.5 m, depending on model—e.g., MCC805 with optional fly jib. Typical radius range from 6.1 m to 9.35 m.

Can you hire or purchase mini crawler cranes?

 Yes. You can hire or purchase GGR’s mini crawler cranes; most models are offered for sale and hire.

What kind of terrain can GGR Group's mini crawler cranes handle?

They’re built for rugged, uneven outdoor terrain and congested sites.

Do mini crawler cranes have Euro Stage V engines?

Yes. Several GGR mini crawler cranes use Euro Stage V diesel engines—for example, the MCC500D and MCC1004—allowing operation in low-emission zones like London’s LEZ/ULEZ.

What industries do mini crawler cranes typically work in?

 Mini crawler cranes are used across: general construction and city sites; civil engineering and waterways (canals/flood schemes); rail infrastructure (stations, OHL, permanent way); manufacturing/plant installs; museums/heritage; utilities/energy (substations); and education/public buildings.
