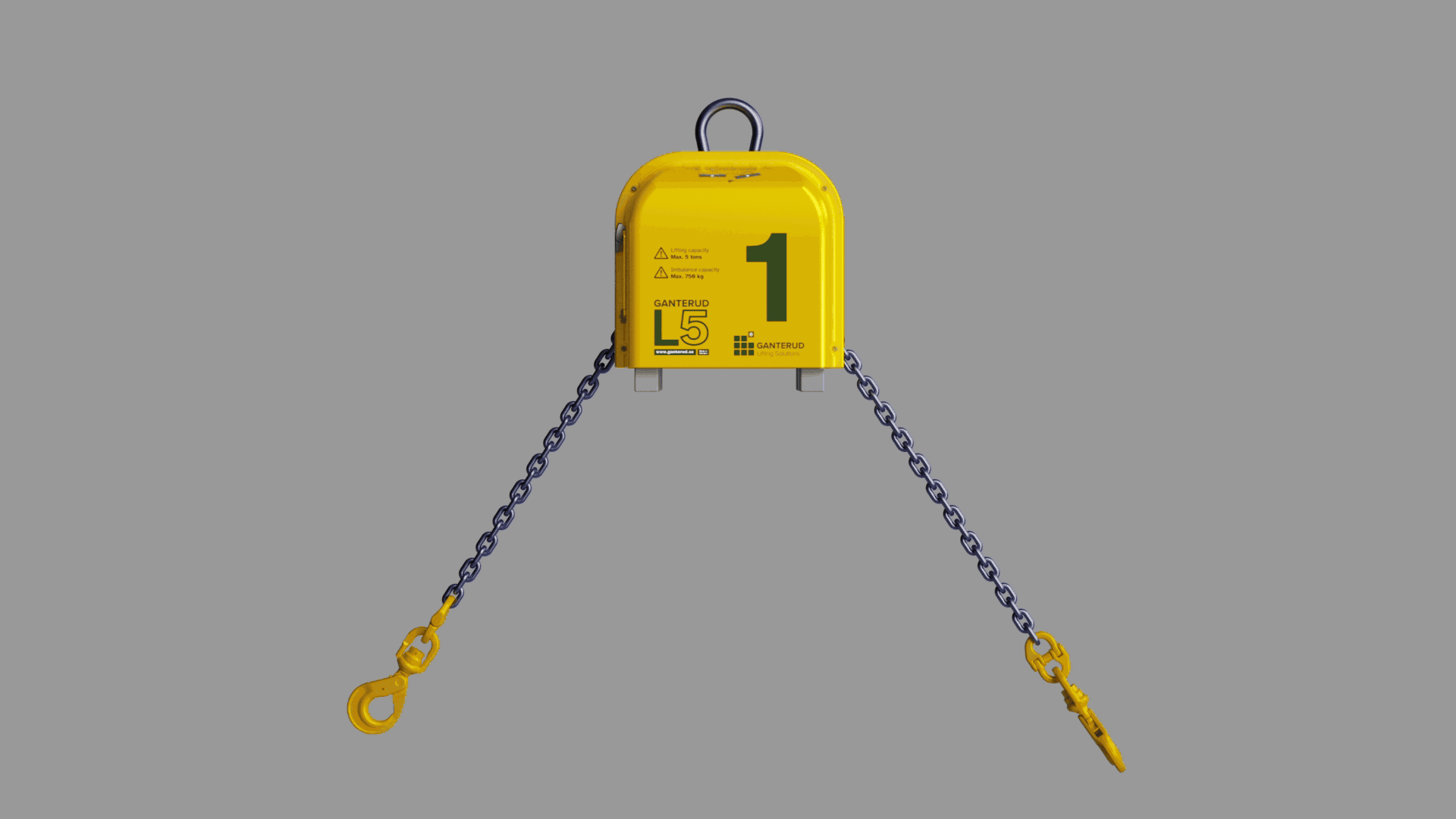

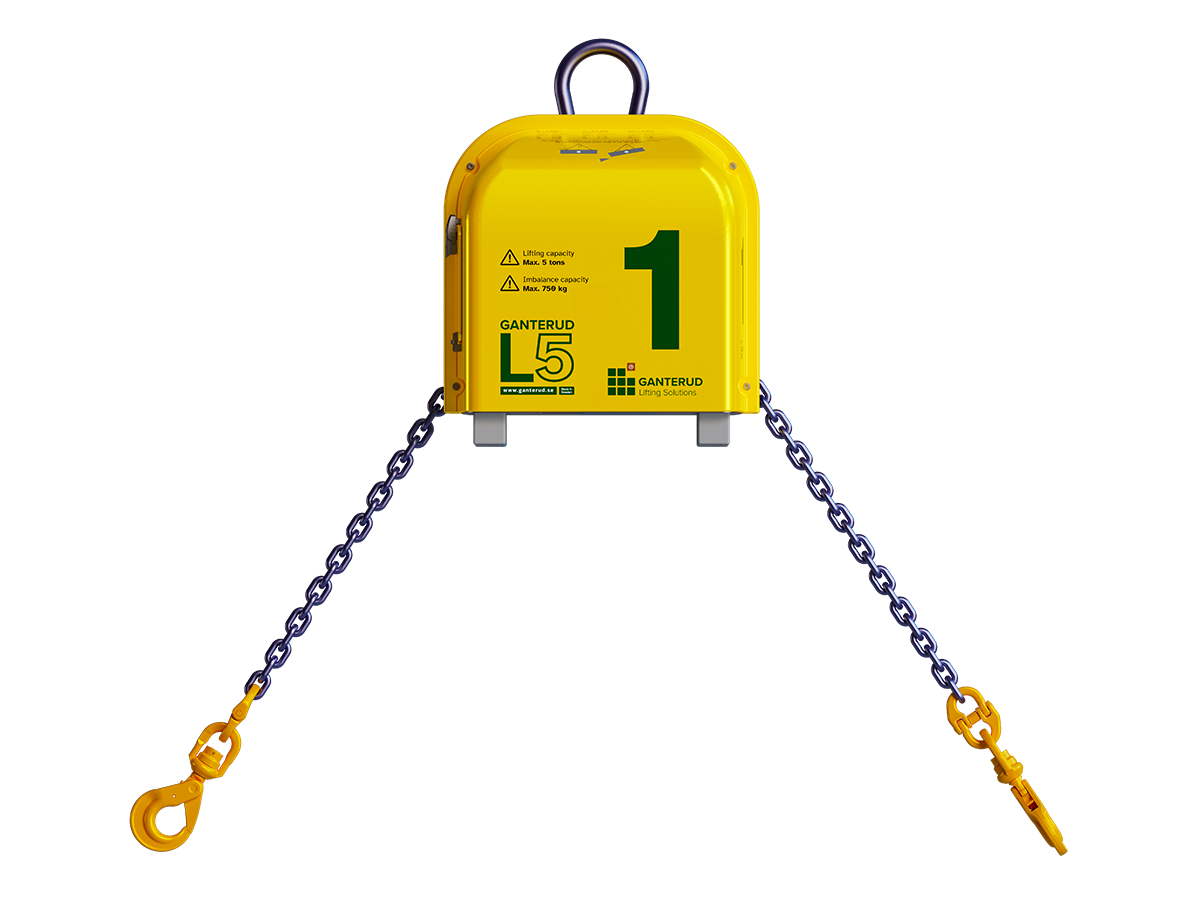

Ganterud L5 – Levelling Yoke
Capacity: 5,000kg
The Ganterud L5 is a precision lifting yoke designed to streamline load handling and levelling across a wide range of applications. Whether lifting light materials or heavy objects up to 5 tonnes, it offers exceptional control and accuracy with minimal effort.

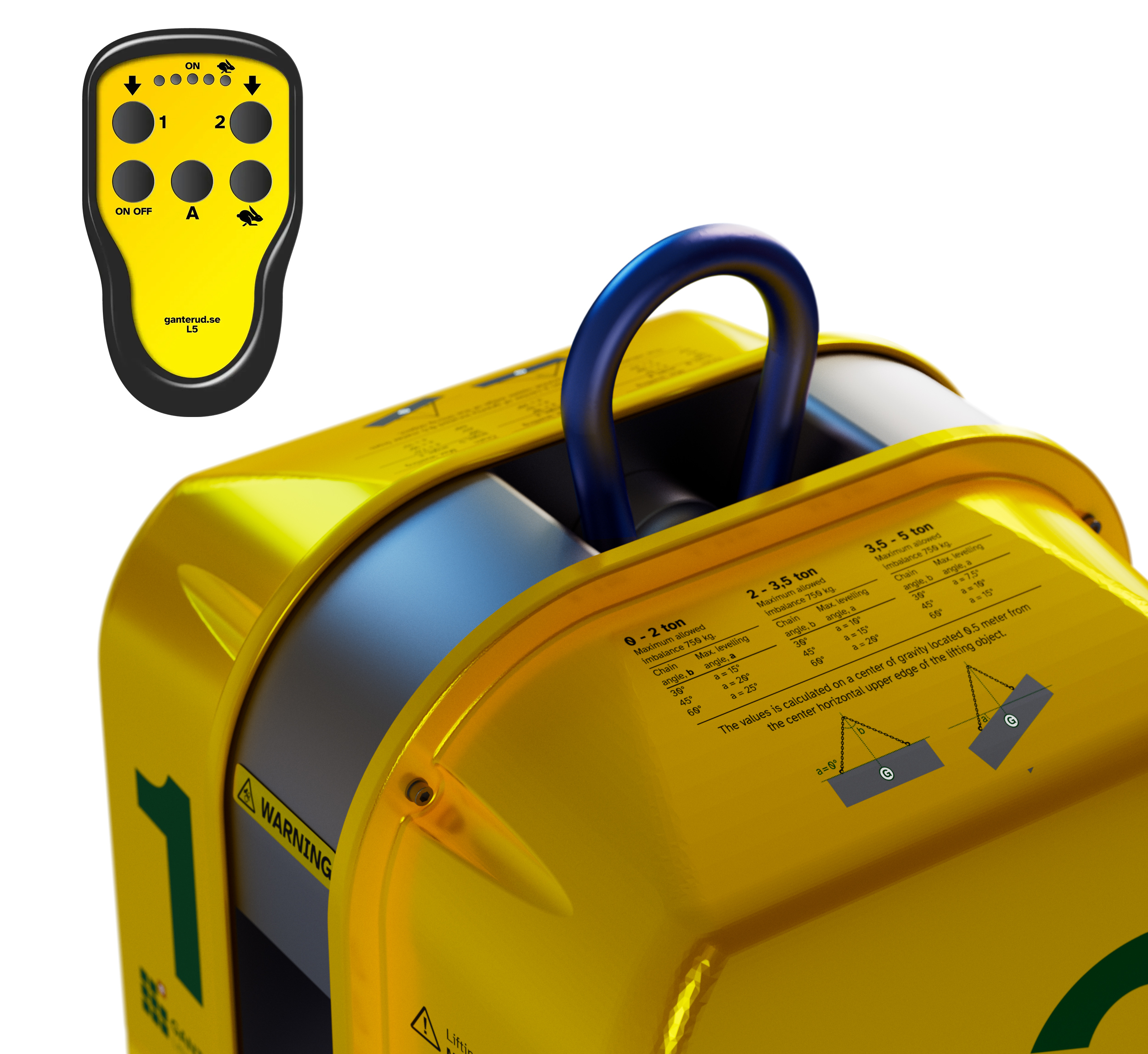

Operation is quick and intuitive. With the simple press of a button on the IP67-rated remote control, users can level loads with ease—thanks to a reversible stroke of up to 1.5 metres per hook. This precision reduces crane time and waiting periods, helping to significantly boost productivity on site.
Engineered for reliability in demanding environments, the L5 operates in temperatures from -20°C to +40°C and is housed in a rugged IP65-rated casing that protects against dust, dirt, and moisture. Its durable build ensures a long service life with minimal maintenance required. In fact, apart from occasional cleaning, the only upkeep involves charging the battery—typically just once a week during normal use. A built-in indicator clearly displays the battery status to avoid unnecessary interruptions.

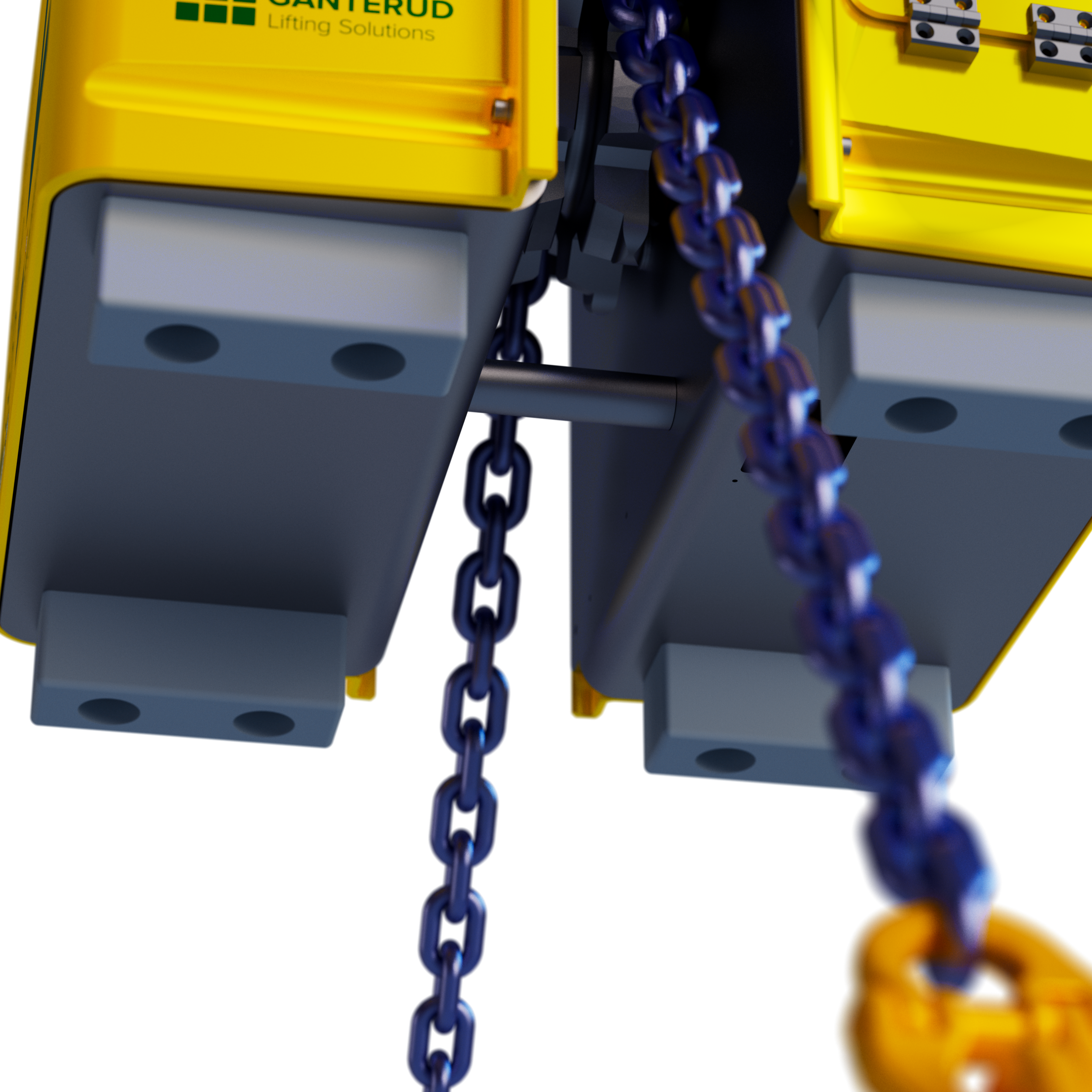

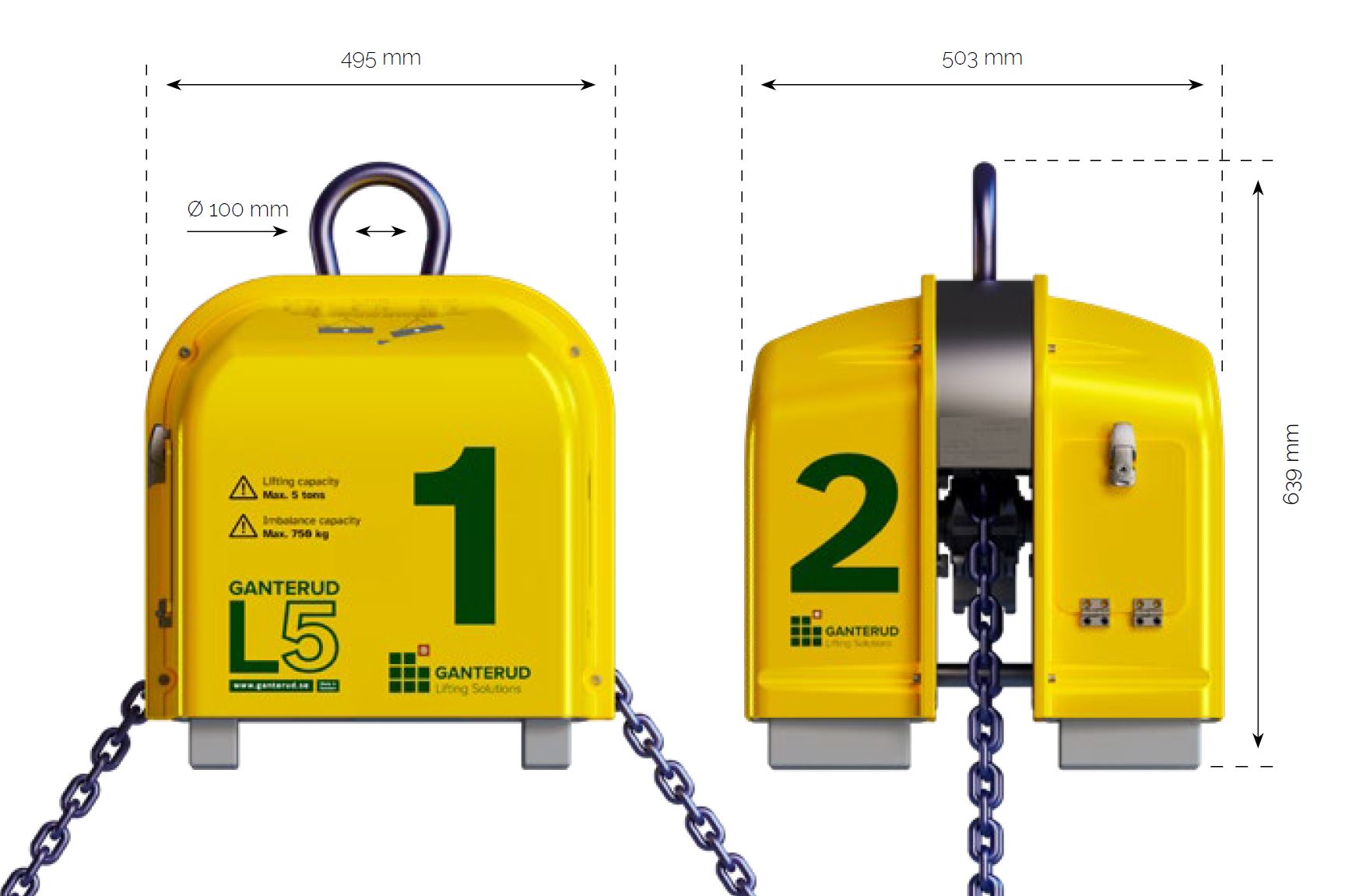

Despite its impressive capabilities, the unit remains compact and manageable at only 126kg. A 3-metre chain, maximum chain angle of 60°, and load imbalance capacity of up to 750kg give it the flexibility to handle a variety of load shapes and sizes with confidence.
Are you looking to hire or purchase the Ganterud L5 Levelling Yoke, or require any further information?
