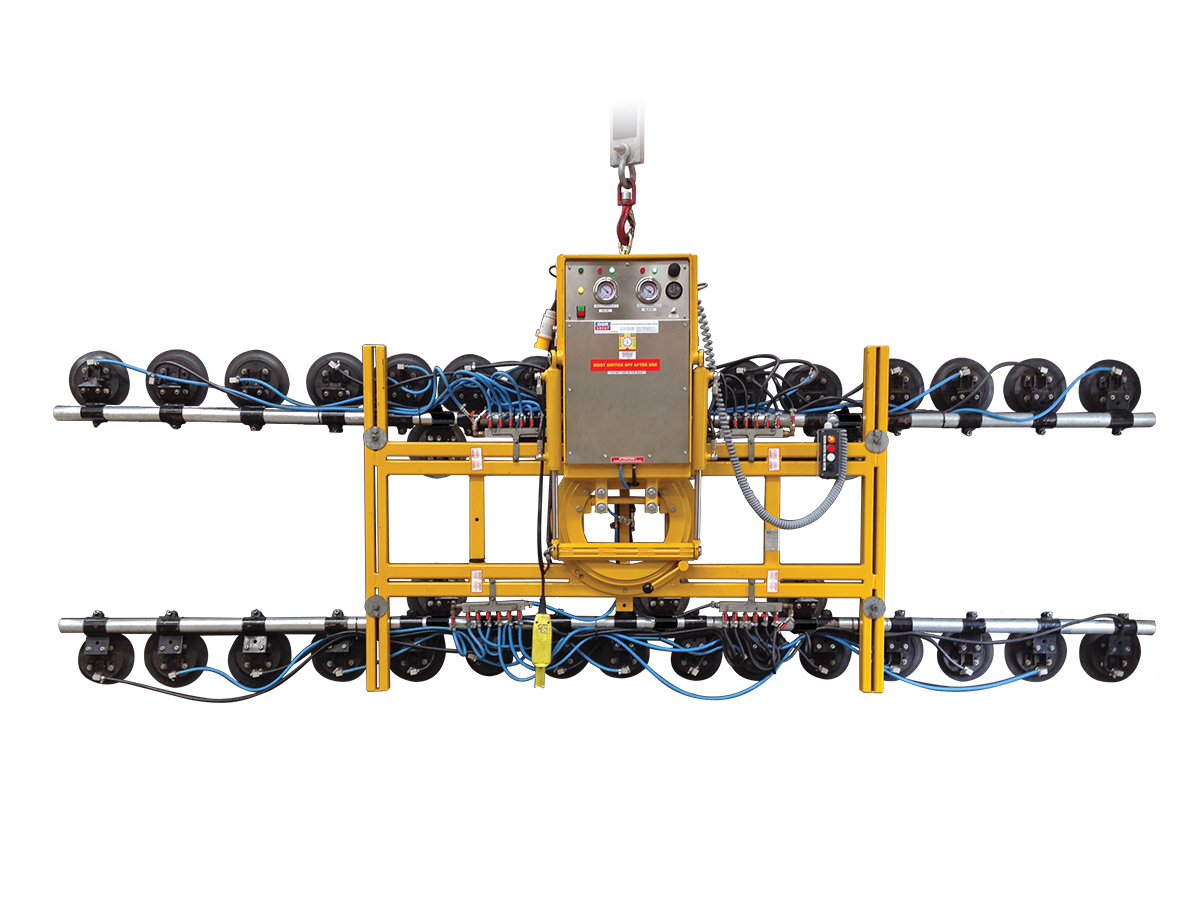

Hydraulica 900C Curved Vacuum Lifting Devices

Capacity: 900kg

Effortlessly lift, tilt and rotate curved glass with the Hydraulica 900C vacuum lifting devices.

These mid-capacity vacuum lifting devices offers 900kg of lifting power and uses 30 vacuum cups set across two swivel arms to securely attach to convex or concave surfaces.

Like our other Hydraulica vacuum lifting devices, the 900C benefits from powered 90° tilt for smooth unloading and positioning of the glass, making it an ideal machine for installing revolving doors, rounded balustrades and curved glass units.

Safety features include two independent vacuum systems and low vacuum alarm to ensure the glass is always securely attached to the lifter.

If you are looking to hire or purchase Hydraulica 900C Curved vacuum lifting devices, or require any further information, contact GGR Group today.

Hydraulica 900C curved vacuum lifting devices
  • Capacity: 900kg
  • Dual circuit vacuum system with reserve tank, non-return valve and vacuum gauge for each circuit
  • Powered 90° hydraulic tilt
  • Manual 270° lockable rotation
  • Two or four on-board maintenance free vacuum pumps
  • 12v rechargeable battery with integral 110v or 240v charger and battery energy gauge
  • Audio-visual low vacuum warning
  • Battery energy gauge
  • Cable remote control as standard
  • Not suitable for use in the rain – read more in our safety guide
  • Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s

Ref: VGL52C

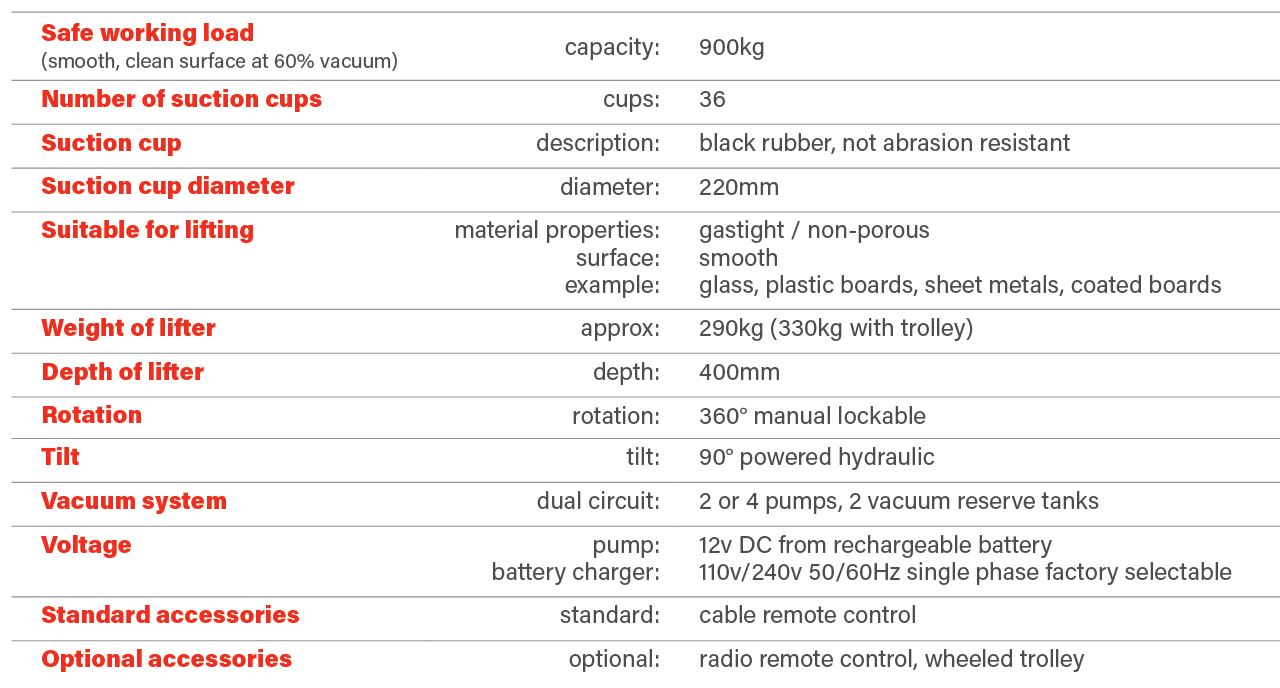

Technical Specification
