Hydraulica 1000 Power Tilt & Rotate

Capacity: 1000kg

The Hydraulica 1000 Power Tilt & Rotate is a high-quality vacuum lifting device with a 1000kg capacity that has proven to be useful in the glass installation business.

For optimum control of heavy-duty loads, this strong suction lifter boasts 360° continuous powered rotation and 90° hydraulic tilt.

We have other Hydraulica vacuum lifters available with capacities up to 4000kg.

If you are looking to purchase the Hydraulica 1000 Power Tilt & Rotate, or require any further information, contact GGR Group today.

  • Powered 360° rotation
  • Safe working load 750-1000kg
  • 90° hydraulic tilting from vertical to horizontal
  • Weight 190kg (with 14 pads), 170kg (with 12 pads), 160kg (with 10 pads), 140kg (with 8 pads)
  • 2 or 4 onboard maintenance-free vacuum pumps
  • Vacuum Pads – 330mm diameter
  • Two, independent vacuum circuits, each with a vacuum reserve tank and non-return valve
  • Two extension arms with variable position pads supplied as standard
  • Vacuum gauge for each circuit
  • 12v battery with integral charger 110v/240v
  • Audio-visual low vacuum alert
  • Cable remote control as standard
  • Individual pads can be isolated to accommodate irregular shapes
  • Optional low-marking pads
  • Not suitable for use in the rain – read more in our safety guide
  • Maximum wind speed for safe use is 29km/h, 18mph, 16.5 knots or 8 m/s

Ref: VGL73

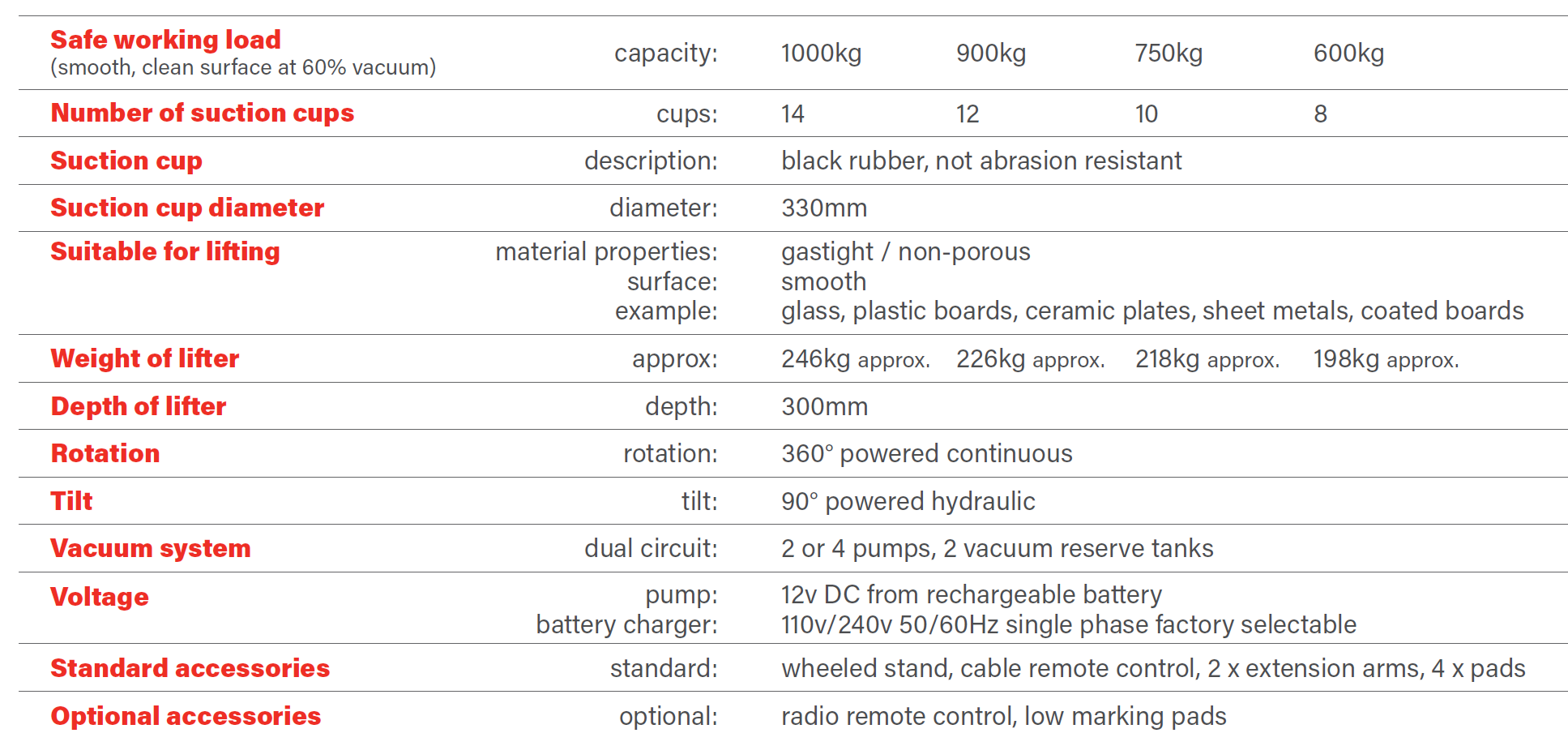

Technical Specification
