Libro 2500B Overhang Beam

Libro 2500B Overhang Beam

Capacity: 2500kg

The Libro 2500B overhang beam features a maximum capacity of 2500kg and is designed to install glass, curtain walling, and cladding beneath overhangs up to 3000mm deep.

Featuring a hook at the end of its lifting arm, the Libro 2500 counterbalance lifting beam can be used with a below-the-hook vacuum lifter, which is also offered for hire or sale from the GGR Group. This high-capacity overhang beam can be attached to tower cranes or mobile cranes and is suitable for installation projects at height.

The Libro 2500B is fitted with a rechargeable battery to power the adjustable 30 counterweight rack and pinion saddle. Controlled by a cable remote, the counterweight saddle can be moved along the beam to balance the load being lifted.

This machine is for hire only.

Do you require further information or want to hire the Libro 2500B Counterbalance Lifting Beam?

Enquire Today
Our new LEEA-accredited eLearning course is now available, designed to help you operate the Libro Overhang Beams efficiently and effectively.
Find Out More
  • Capacity: 2500kg
  • Lifting arm for working under 3 metre deep overhangs
  • Hook attachment
  • Cable remote control for counterweight saddle
  • 24V DC battery with separate 110/240v charger
  • Weight: 1250kg approx. (with counterweights), 500 kg approx. (without counterweights)
  • VOB2500B

Libro 2500B Spec Sheet

Technical Specification

Technical Table

Dimensions

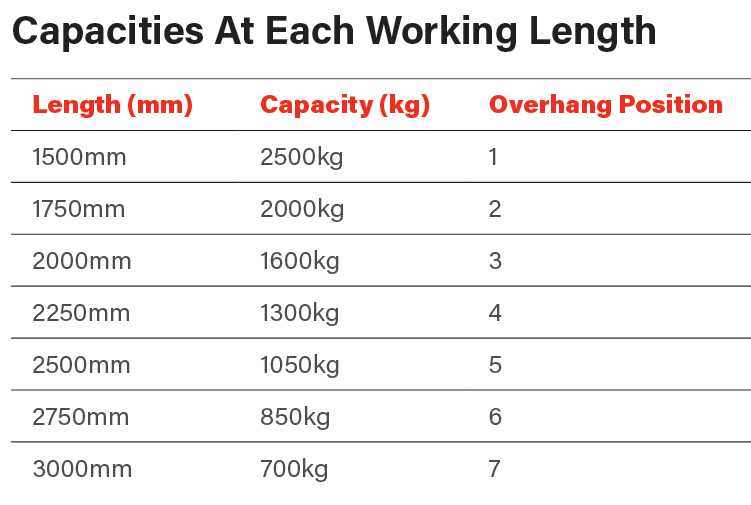

Capacities at Each Working Length

eLearning Is Now Available For This Machine

Designed to help you operate the associated Libro Overhang Beams efficiently and effectively.
Fully interactive and divided into manageable sections, our online training includes engaging scenarios, instructional films, and quiz questions to help you learn.
Start your eLearning journey with GGR by clicking the button below.

eLearning With GGR
