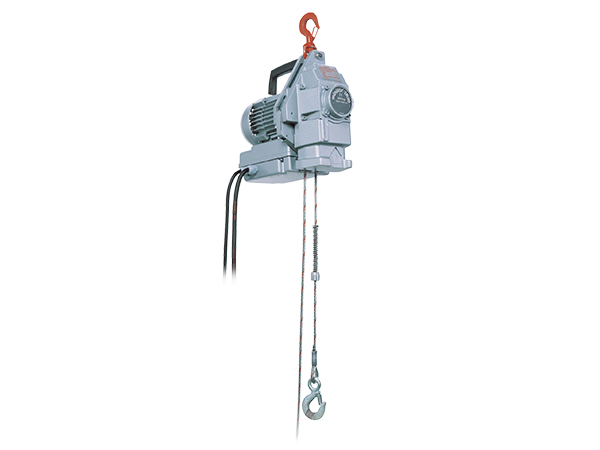

Used on construction sites the world over, the Minifor TR30 hoist is characterised by its small size, low weight, and user-friendliness. The length of the wire rope is unrestricted, so in practice, there are no limits on the lifting height. This hoist may be used not only to lift things but also to pull loads in any direction, making it an incredibly versatile piece of equipment.
Controlled via a control pendant that comes equipped with a cable measuring 2.5 metres, and buttons labelled “Up,” “Down,” and “Emergency Stop.” The length of the power supply cable is one metre, and it has a 110v 16A connector. The Minifor TR30 hoist can also be supplied with an optional radio remote control with a default range of 70 metres at 433 MHz.
The TR30 is a portable and compact motorised system that may be used for lifting, pulling, and positioning loads from ground level to upper levels or vice versa. The TR30 hoist is adept at lowering loads below ground in places such as those found in underground tunnels and lift shafts.
This adaptable mid-capacity hoist is ideal for combining with our range of portable gantry cranes such as the Portable Gantry Crane, the Mobile Gantry Crane 2000 or the 500kg capacity Mini Gantry Crane.
It is supplied with a metal storage case, wire rope storage drum and metal winding handle.
Weight of device: 20kg.
If you are looking to hire or purchase a Minifor TR30, or require any further information, contact GGR Group today.
