Floor cranes are essential tools for various lifting applications, from installing glass and shopfront glazing to handling loads in workshops or confined spaces. With their versatility and ease of use, floor cranes have become a reliable choice for many industries. In this blog, we explore the different types of floor cranes available, their capabilities, and how they can support your next lifting project.

Choosing the Right Floor Crane for Your Needs

When selecting a floor crane, it’s important to consider the specific requirements of your project. Factors such as load capacity, maximum hook height, and ease of manoeuvrability play a key role in determining the right equipment. Here are some of the floor cranes offered by GGR Group, each designed to meet a range of lifting challenges:

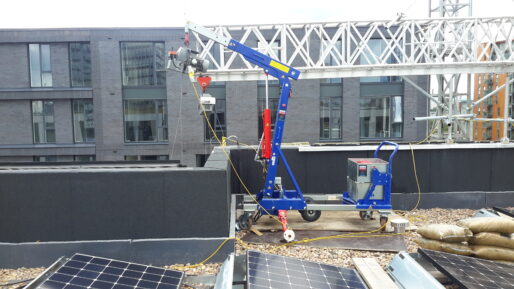

Glassboy Floor Crane

Capacity: 330kg & 500kg

The Glassboy floor crane is a compact and reliable lifting solution, ideal for installing glass and shopfront glazing, as well as fitting loads below overhangs or performing general workshop lifting. This crane’s manually operated hydraulic lifting arm can be paired with GGR’s vacuum lifters for handling glass or stone. With its 330kg and 500kg safe working load options, the Glassboy is a versatile tool for precise lifting tasks.

For added flexibility, the Glassboy can be fitted with an electric hoist, making it suitable for raising and lowering loads between floors or on rooftops. GGR Group also offers a customised version of this crane with a motorised winch, featuring Maxiflex steel wire ropes available in lengths of 10-80m, making it ideal for use in low-point load environments.

MFC 750 Floor Crane

Capacity: 745-900kg

Designed for use in confined spaces and on rooftops, the MFC 750 floor crane boasts a lifting capacity of up to 900kg. This crane is perfect for lifting loads over obstacles and features a maximum hook height of 2.9 metres. Its swivel castors ensure smooth travel across flat surfaces, while optional rough terrain tyres enhance its performance on uneven ground.

For more demanding applications, the MFC 750 can be equipped with a Z Boom, allowing materials to be lifted over balustrades, walls, and other obstacles. The crane’s extension arm and optional long boom provide greater reach, with a maximum working height of 3.35m and a hook-to-wheel distance of up to 2300mm.

Green Lifter Floor Crane

Capacity: 900kg

The eco-friendly Green Lifter floor crane combines power and sustainability, featuring a 900kg lifting capacity and battery-powered operation. Its compact dimensions make it ideal for navigating confined and restricted areas. The Green Lifter’s electro-hydraulic controls and radio remote control provide precision when lifting materials such as stone and glass.

With a maximum hook height of 3.9m and a battery life of up to 8 hours, this crane ensures efficient performance. The manual drive function and compact design enable easy manoeuvrability around permanent structures and obstacles, making it a popular choice for environmentally conscious projects.

Oscar 250E Floor Crane

Capacity: 250kg

The Oscar 250E floor crane offers a lifting height of up to 7.5m in just 60 seconds, making it an excellent option for time-sensitive projects. Its 250kg capacity is supported by an electric forward and reverse drive, ensuring safe and efficient load transport around the site.

Safety features include an overload spring function and an emergency body bump device, enhancing operator protection. This crane’s ability to pair with a variety of lifting equipment makes it a versatile solution for handling materials like glass and stone with ease.

GML800+ Floor Crane

Capacity: 800kg

The GML800+ floor crane combines power and versatility, offering a lifting height of up to 7.94m and an 800kg capacity. Its compact design and ease of assembly make it suitable for confined spaces and hard-to-reach areas. This crane is equipped with a crane hook for attaching a glass vacuum lifter, enabling fast and efficient glazing installations.

Optional attachments, such as a 500kg capacity vacuum lifter with 90° powered tilt and 360° continuous rotation, make the GML800+ a highly adaptable tool for complex lifting tasks. Additional options include a 1.2m hook extension and forks, further enhancing its utility on site.

Why Choose GGR Group for Your Floor Crane Needs?

With 25 years of experience in the lifting industry, GGR Group has an extensive range of innovative products available for hire and purchase. Their floor crane selection provides heavy lifting in confined and hard-to-reach environments without the need for fossil fuels. To lift safely and confidently contact GGR Group today to discuss which floor crane is best for your project.
