3.0 FX Tracked Carrier

3.0 FX Tracked Carrier

Capacity: 3000kg

The powerful 3.0 FX Tracked Carrier gives users versatility, heavy-duty carrying capability, and increased gradability in a small package, giving materials handlers a useful tool for heavy-duty lifting in both indoor and outdoor settings. Featuring a class-leading electric drive with two 5.3kW super-quiet IP67-rated AC electric motors, the 3.0 FX Tracked Carrier can be fitted with AGM or Lithium batteries and features three power management configurations giving different speeds:

ECO @ 1.2 km/h / STD @ 2.0 km/h / POW @ 4.2 km/h

This innovative electric tracked carrier features a fully removable battery pack, equipped with its own internal charger. This unique feature helps to eliminate downtime for users on-site. An additional support beam on each corner provides added support for larger loads, they can be fitted to make the loading area either longer or wider. The platform itself sits on a freely rotating slewing ring with 16 different lockable positions to choose from so you can adapt the platform to your load needs.

The unique non-marking track design of the 3.0 FX Tracked Carrier offers increased accessibility and gradability thanks to the rollers that actively adapt to the terrain, ensuring grip to help avoid accidental load spills along with the automatic tilt alarm.

If you are looking to hire an 3.0 FX Tracked Carrier or require any further information, contact GGR Group today.

ML 3.0 FX Features

  • Max capacity: 3000kg (up to 25°)
  • Max speed: 4.2km/h
  • Max gradient: 45° longitudinal, 30° lateral
  • Non-marking tracks
  • 360° slewing platform with 16 positions
  • Three different driving modes: Main / ED-S / DC-S
  • Three power management modes: Eco / Std / Pow
  • 4 hours recharge time (LTH), 7 hours (ELC)
  • Automatic tilt alarm with speed reduction
  • Ground clearance: 64mm
  • Weight with battery: 720kg (LTH), 790kg (ELC)
  • Reference Codes: AGM Battery: TPS 3.0 ELC, LTH Battery: TPS 3.0 LTH

ML 3.0 FX Technical Table

ML 3.0 FX Dimensions

ML 3.0 FX Platform Rotation

Dolly Kit Dimensions

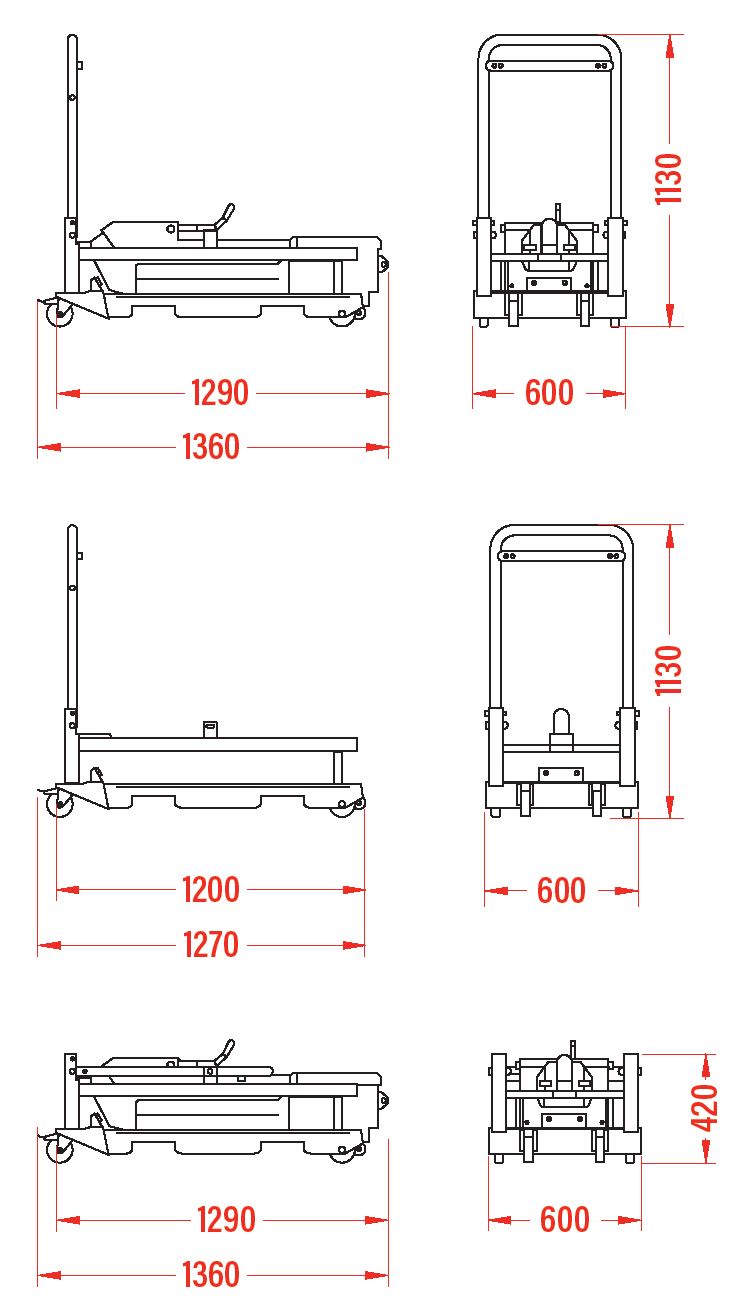

Battery Dolly Dimensions

MultiFrame Dimensions

Lifter Kit Table

Lifter Kit Dimensions

Optional Extras

Dolly Kit

Battery Dolly

MultiFrame

Lifter Kit

Extend the capabilities of the 3.0 FX with the optional Dolly Kit, a 1500kg capacity support extension that helps operators carry extra-long loads easily.

Large heavy-duty offroad tyres make this the perfect addition for manoeuvering longer loads over rough ground. Weighing a total of 96kg, this strong unit can safely handle loads such as steel girders, timber beams, concrete posts, and much more.

Reference Code: TPS 3.0 DOK

Make changing the battery of the 3.0 FX Tracked Carrier easier with this handy Battery Dolly.

With a 170kg capacity and built-in rollers you can have minimal downtime, keep operators safer due to minimal manual handling, and complete your job quicker with this optional extra.

The Battery Dolly features a high-quality, sturdy frame that weighs just 30kg and folds down for easy storage.

Reference: TPS 3.0 BCK

Safely transport glass around site with this optional Multiframe attachment for your 3.0 FX Tracked Carrier.

This double-sided a-frame has a capacity of up to 2400kg and offers sturdy transport when used with this all-terrain machine. With a suitably angled frame and raised edge, you can feel confident in the transport and storage of your windows, flat glass, and glass units.

Reference: TPS 3.0 AFR

Available in two stages the optional Lifter Kits are easily attached and removed from the 3.0 FX Tracked Carrier.

The included self-standing kit allows the user to track the machine beneath Lifter Kit without much manual labour involved. With the hydraulic scissor lift table, you can deliver and raise loads to your desired height.

Battery-powered and highly portable, this Lifter Kit is also cost-effective and carbon-neutral.

Lifter Kit Single Stage: TPS 3.0 LK1

Lifter Kit Double Stage: TPS 3.0 LK2
