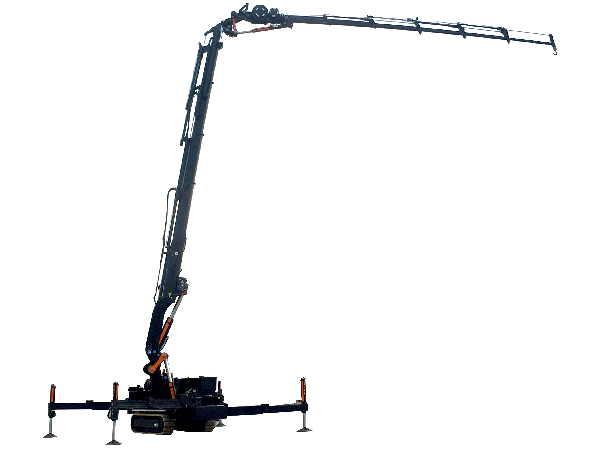

TMC 525 Articulated Crawler Crane

Capacity: 14t x 3.01m

The class beating TMC 525 provides the ultimate combination of heavy lifting power and unbeatable performance. Its lightweight and compact size means the TMC 525 can conduct lifting operations in areas where similar cranes cannot.

This mini crane boasts a lifting power of 14.4 tonnes, with a maximum lift height of up to 32 metres maximum at 580kg capacity.

The TMC 525 benefits from a continuous 360 rotation for maximum control and placement of loads and can travel and operate on rough and uneven terrain, including slopes.

The multifunctional radio remote control provides real time data during lifting operations and provides better visibility for operators for safer proximity and precise placement of loads where required.

If you are looking to hire or purchase this crane, or require any further information, contact GGR Group today.

  • Capacity 14 tonnes
  • Hook height 20m (32.5m with six section jib)
  • Working Radius 16.85m (29.4m with six section jib)
  • Transport dimensions: 5990mm (l) x 1850mm (w) x 2615mm (h)
  • Weight: 13200kg, (1000kg jib), (200kg electric motor), (250kg winch), (3800kg mobile ballast), (135kg rubber pads)
  • Continuous 360° rotation
  • Fold-away, hydraulic legs
  • Multifunctional radio remote with real time data
  • Triple jockey wheel
  • Radio remote control with visual overload warning alarm is included
  • Operates on rough terrain, including slopes
  • Optional equipment: hydraulic jib, manual extensions, lowered hook connections, lowered connections for glass vacuum lifters, two man basket, direct pull winch, led working lamps, towing winch, electric generator, removable large box, removable load pads, bigger outrigger plates,  low marking rubber pads, rubber pads, green oil
  • Ref: TMC525
