MC350 – Pick & Carry Crane

Capacity: 35t

The powerful MC350 pick and carry crane features a heavy lifting capacity of up to 35 tonnes and a 1395Ah battery, offering up to 8 hours of continuous operation.

This all electric heavy lifting machine features a lifting height of up to 16 metres and benefits from a small working footprint thanks to its slender 2250mm chassis, making it perfect for working in environments where working space may be confined.

A green zero emissions machine, the MC350 pick and carry crane is ideal for industrial environments, substations and working in ULEZ and clean air schemes to help customers reduce their carbon footprint without compromising on operational efficiency and lifting capacity.

The MC350 pick and carry crane also features a front wheel drive system with counter rotation for greater control and manoeuvrability, the machines counterweights can be removed when required and outriggers can also be deployed in two positions (200/300mm) for increased stability.

An ideal choice for replacing machines such as telehandlers, forklifts, big cranes or carry deck cranes, pick and carry cranes of this type have proven to be a better choice in terms of performance, precision control of loads and compactness.

All of our cranes are available for hire or purchase, and CPCS A66 training courses are also available, contact GGR Group today to find out more.

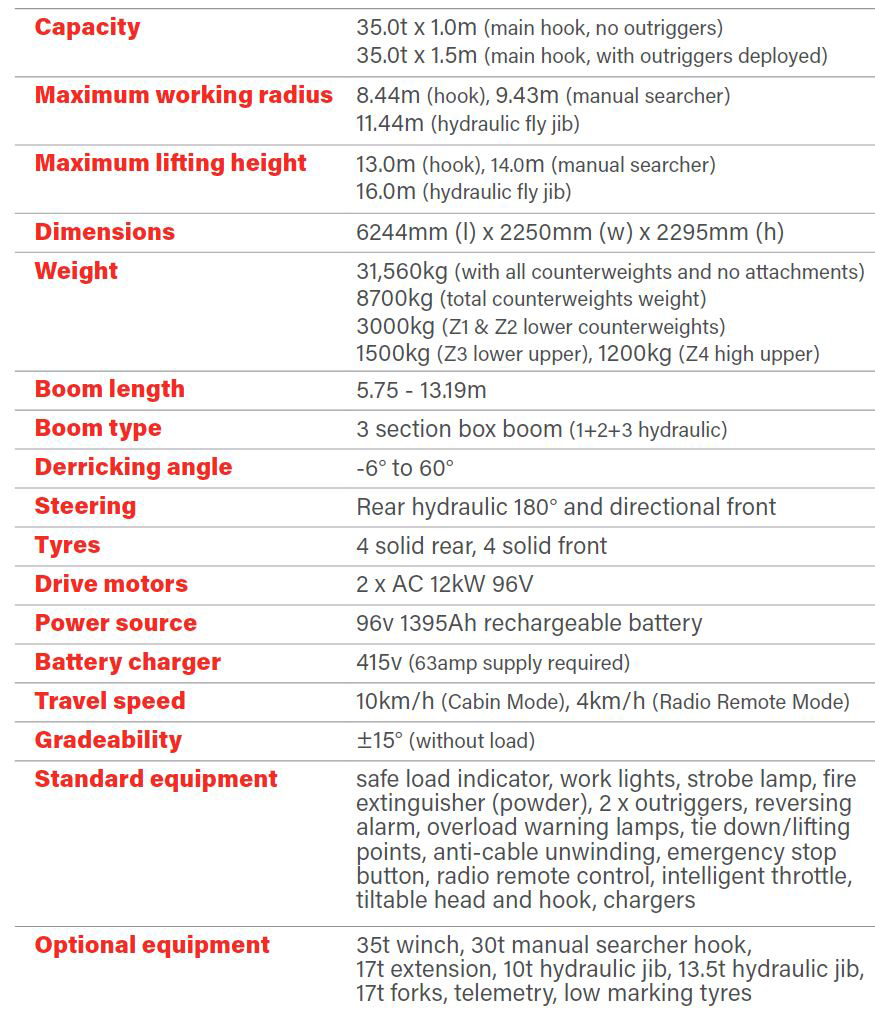

  • 35t capacity

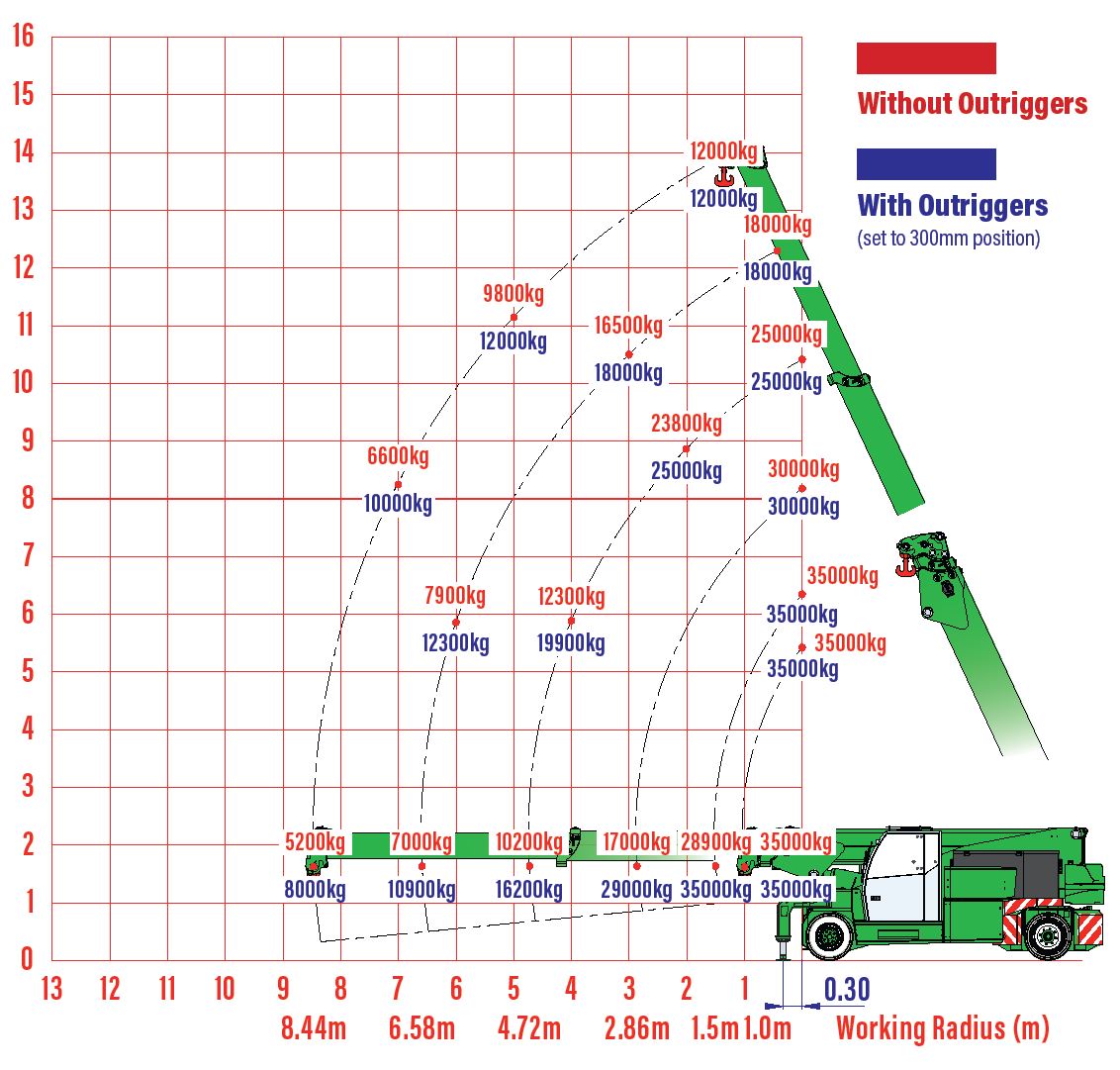

  • Maximum lifting height: 13.0m (hook), 14.0m (manual searcher), 16.0m (hydraulic fly jib)
  • Maximum working radius: 8.44m (hook), 9.43m (manual searcher), 11.44m (hydraulic fly jib)
  • Weight: 31,560kg (with all counterweights and no attachments), 8700kg (total counterweights weight), 3000kg (Z1 & Z2 lower counterweights), 1500kg (Z3 lower upper), 1200kg (Z4 high upper)
  • Optional 35t hydraulic winch
  • Optional 30t manual searcher hook
  • Optional 17t extension
  • Optional 10t hydraulic fly jib
  • Optional 13.5t hydraulic fly jib
  • Optional 17t forks
  • Optional telemetry
  • Optional low-marking tyres

Ref: MC350
