UNIC URW-806 – Mini Spider Crane

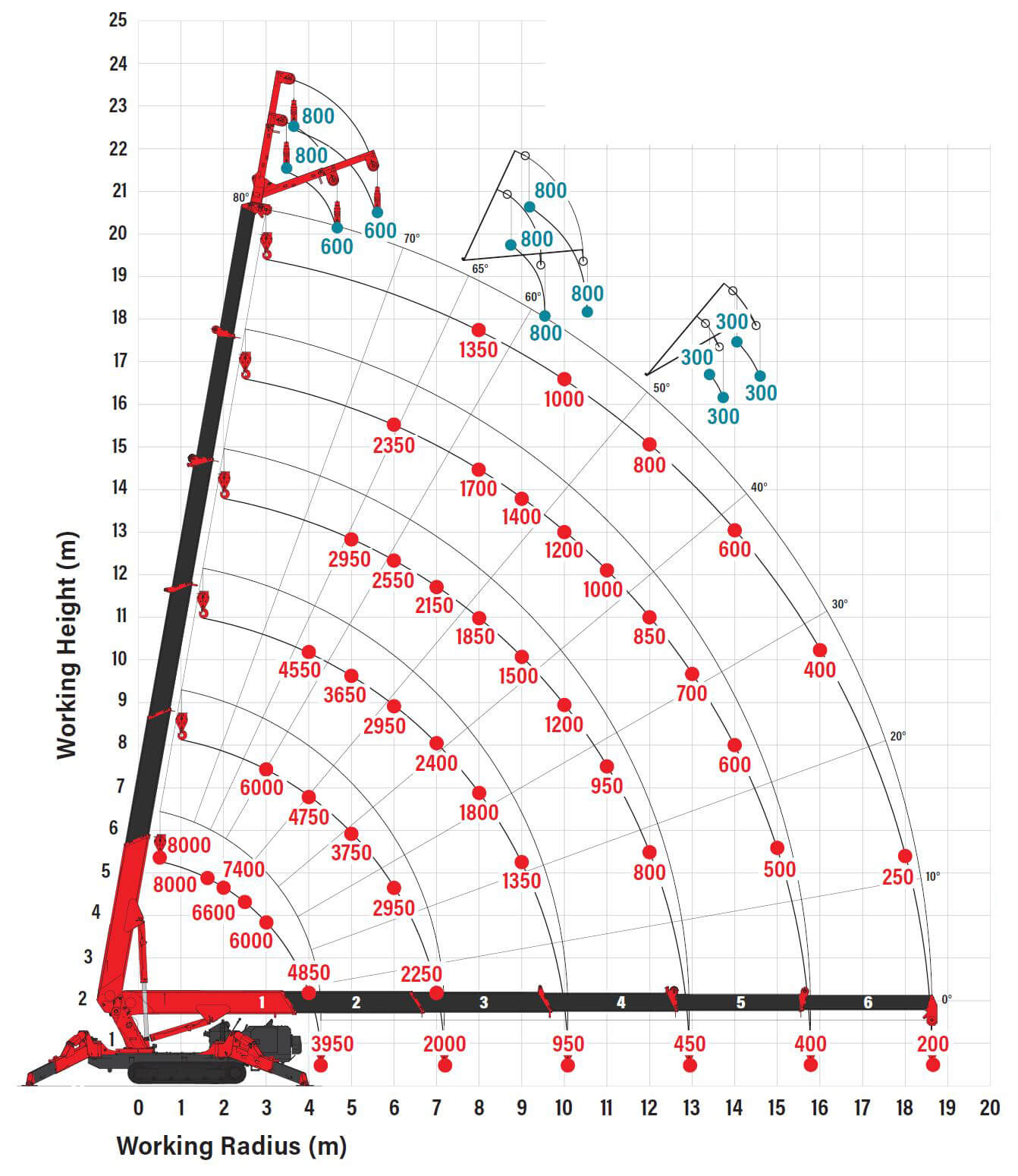

Capacity: 8.0t x 1.7m

The UNIC URW-806 mini spider crane builds upon the trusted URW-706 concept, offering enhanced lifting capacity and smarter control, while maintaining its compact design for restricted-access sites. It delivers an impressive 8,000kg maximum capacity at 1.7m, giving you extra performance for demanding lifts without sacrificing manoeuvrability in tight spaces.

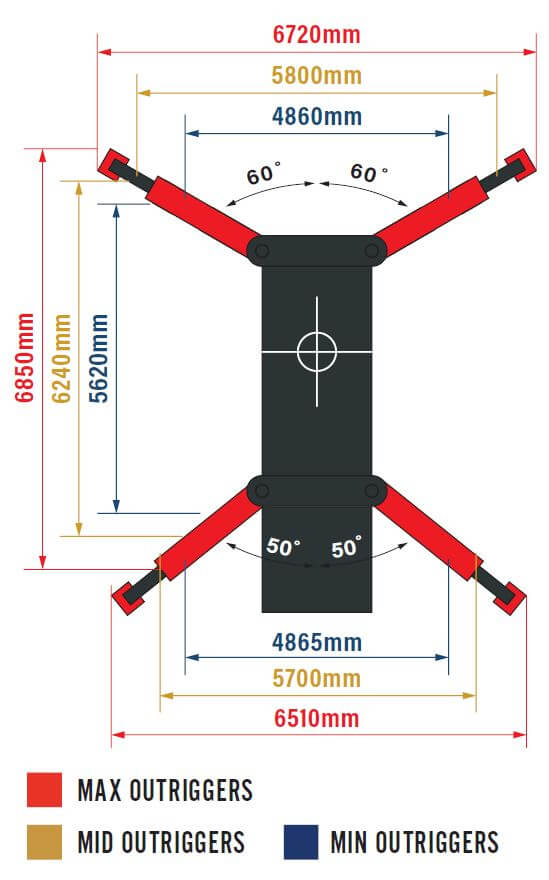

Operation is improved with a Scanreco full-colour screen remote, providing clear feedback and real-time status to help operators work confidently and efficiently. An optional variable footprint system increases flexibility when space is limited, allowing the crane to be set up to suit awkward or confined working areas while maintaining stability.

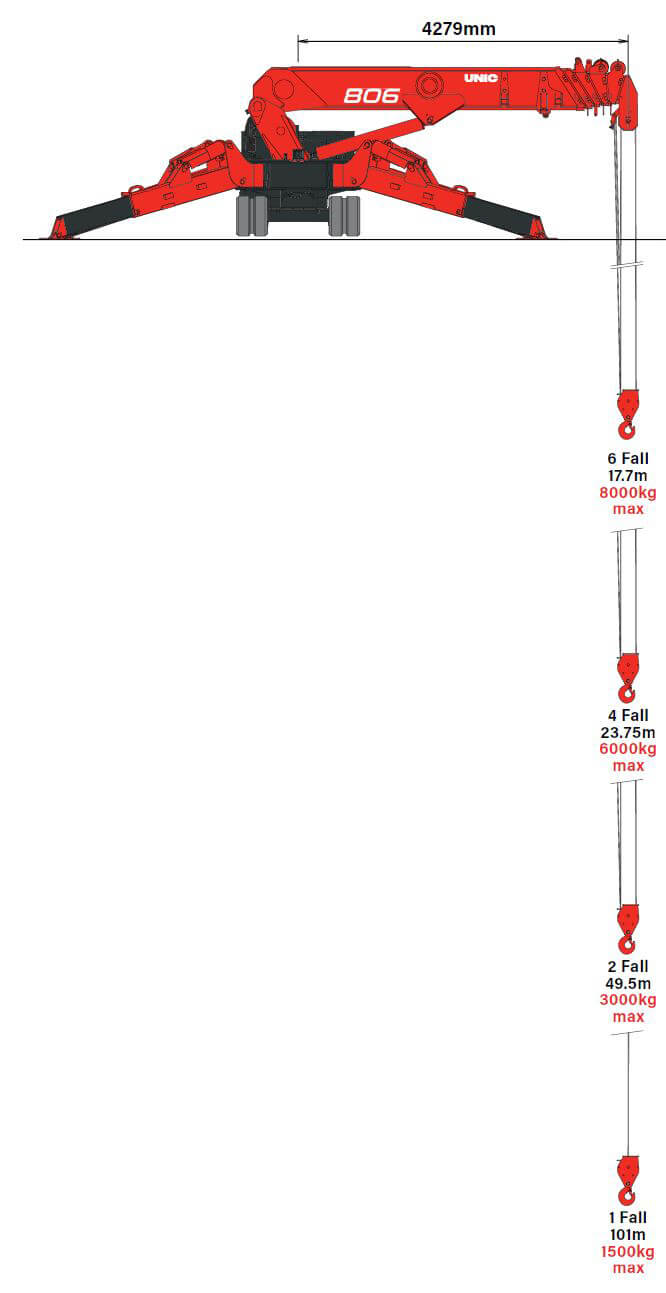

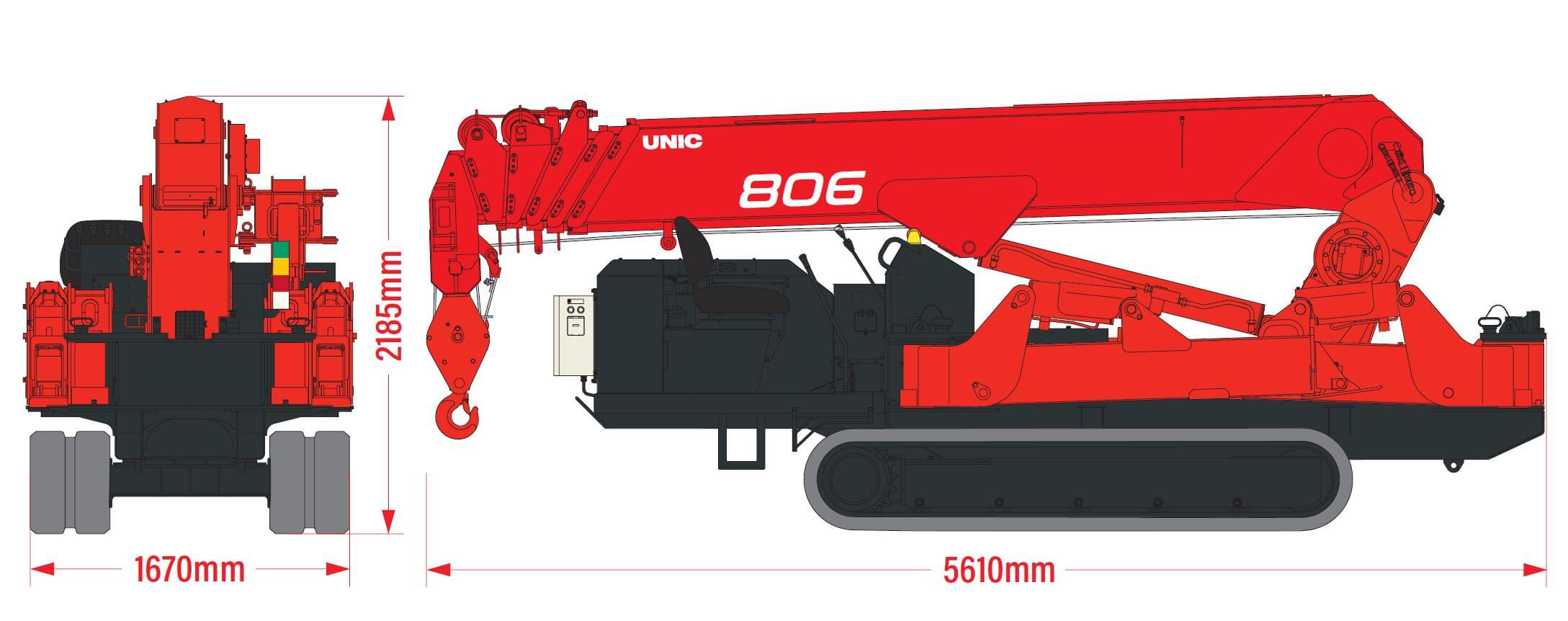

The URW-806 is also compatible with the UNIC ECube lithium system, enabling charge-while-in-use capability for extended runtime, zero on-site emissions, and low-noise operation—ideal for indoor and sensitive environments. With a 19.5m lifting height and a narrow 1,600mm width, it can pass through a standard double doorway. The optional searcher hook and 3.1m fly jib increase the maximum hook height to 22.7m.

Do you require further information or want to hire or purchase the UNIC URW-806 Mini Spider Crane?

Enquire Today
URW-706 Mini Spider Crane
  • Capacity 8.0t x 1.7m
  • Total width 1.67m
  • Max working radius 18.6m
  • Max lifting height 19.5m (22.7m with hydraulic fly jib)
  • Max boom length 19.2m
  • Diesel-powered and optional mains electric
  • Zero length increase with electric option
  • Radio remote control as standard
  • Working area limitation
  • Intelligent throttle activation for economic fuel consumption
  • Optional low-marking tracks
  • Optional radio remote control with feedback display
  • Maximum wind speed for safe use is 36km/h, 22mph or 10m/s

Ref: MCU806
