UNIC URW-546-2

UNIC URW-546-2

Capacity: 4t x 2.5m

The UNIC URW-546-2 mini spider crane comes with a hydraulic jib that seamlessly combines operational flexibility with robust lifting power, featuring a new hydraulic jib with four hook options — the latest spider crane model surpasses the standard URW-546 mini spider crane with an expanded working height of up to 22.8m and an increased working radius of 17m.

The URW-546 mini spider crane with hydraulic jib boasts a slim 1.3m width for adept manoeuvrability through internal doorways and operation in confined spaces Features include an optional upgrade to the -VF for the variable footprint system, enhancing crane flexibility.

The URW-546 mini spider crane with hydraulic jib seamlessly integrates into the UNIC crane range, maintaining unrivalled performance and reliability while introducing heightened flexibility and usability.

Do you require further information or want to hire or purchase the UNIC URW-546-2 Mini Spider Crane?

Enquire Today

Features

  • Capacity 4.0t x 2.5m
  • Total width 1.3m
  • Comes complete with hydraulic jib
  • Four lifting attachments (searcher hook, single line hook, rhino hook and stub)
  • Max working radius 17m with searcher and single-line hooks
  • Zero-length increase with electric option
  • Operator control of outrigger extension
  • Radio remote control as standard
  • Working area limitation
  • Slew limitation (optional)
  • Intelligent throttle activation for economy and ecology

Technical Specification

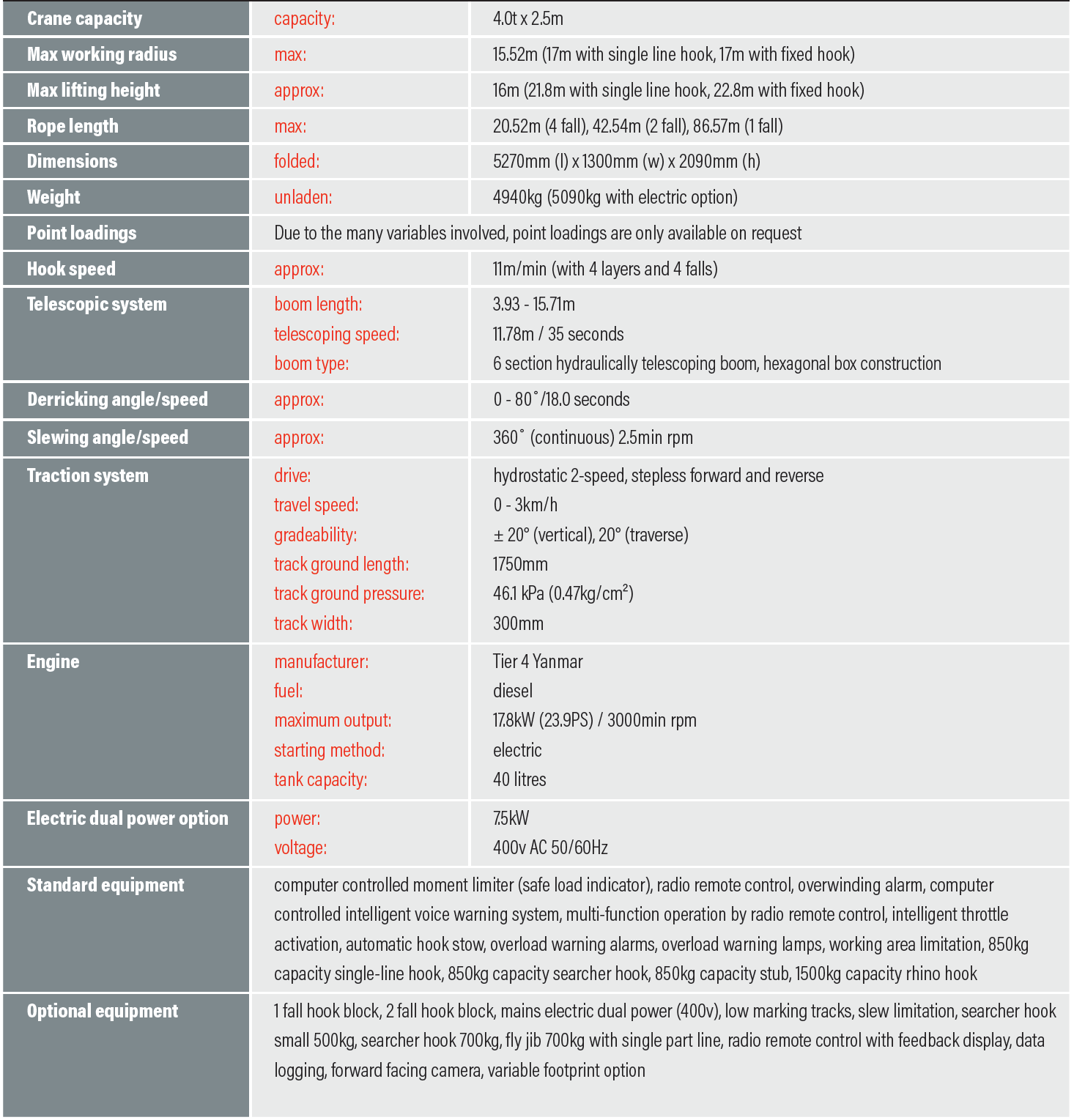

Technical Table

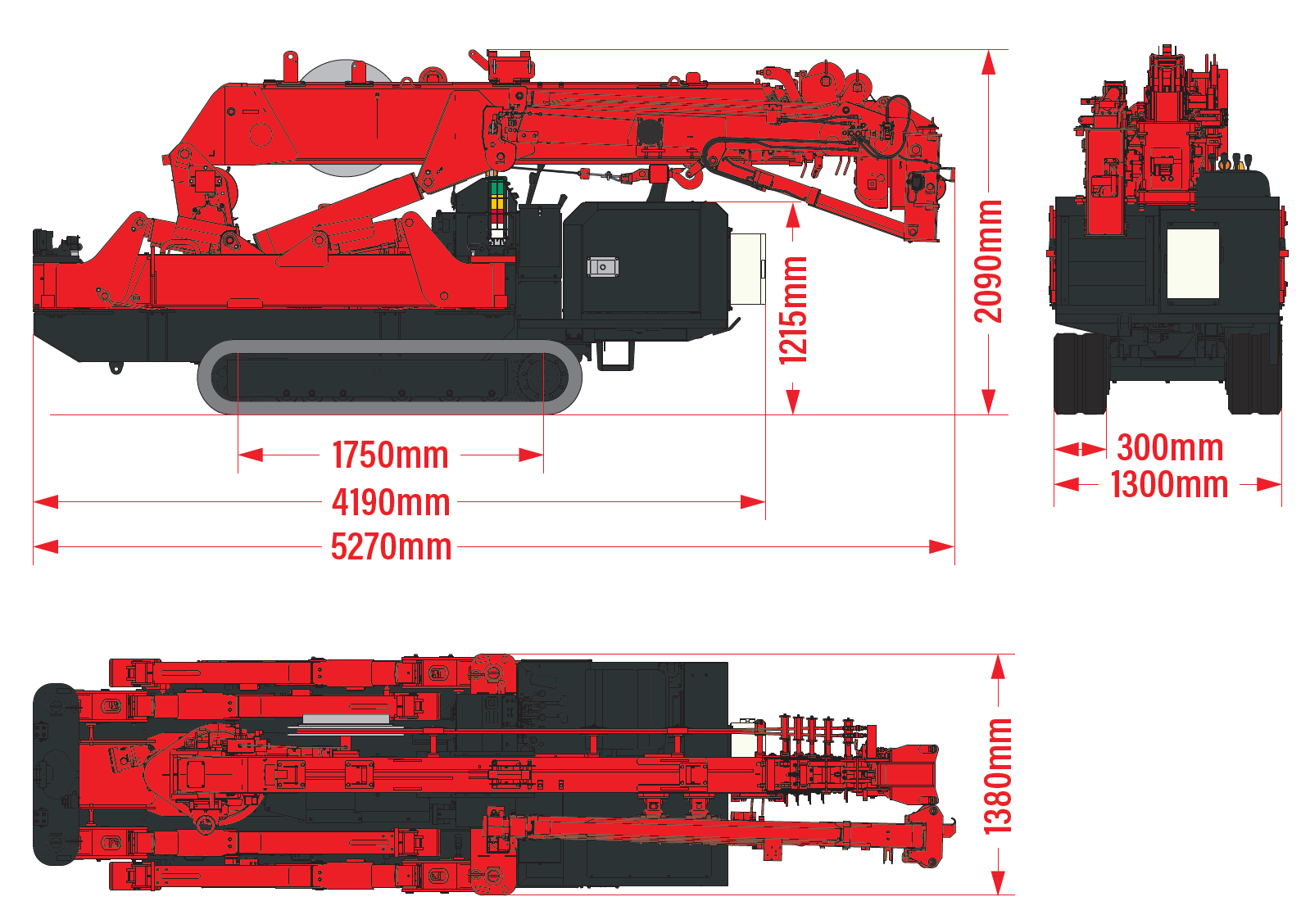

Dimensions

Main Boom Stages

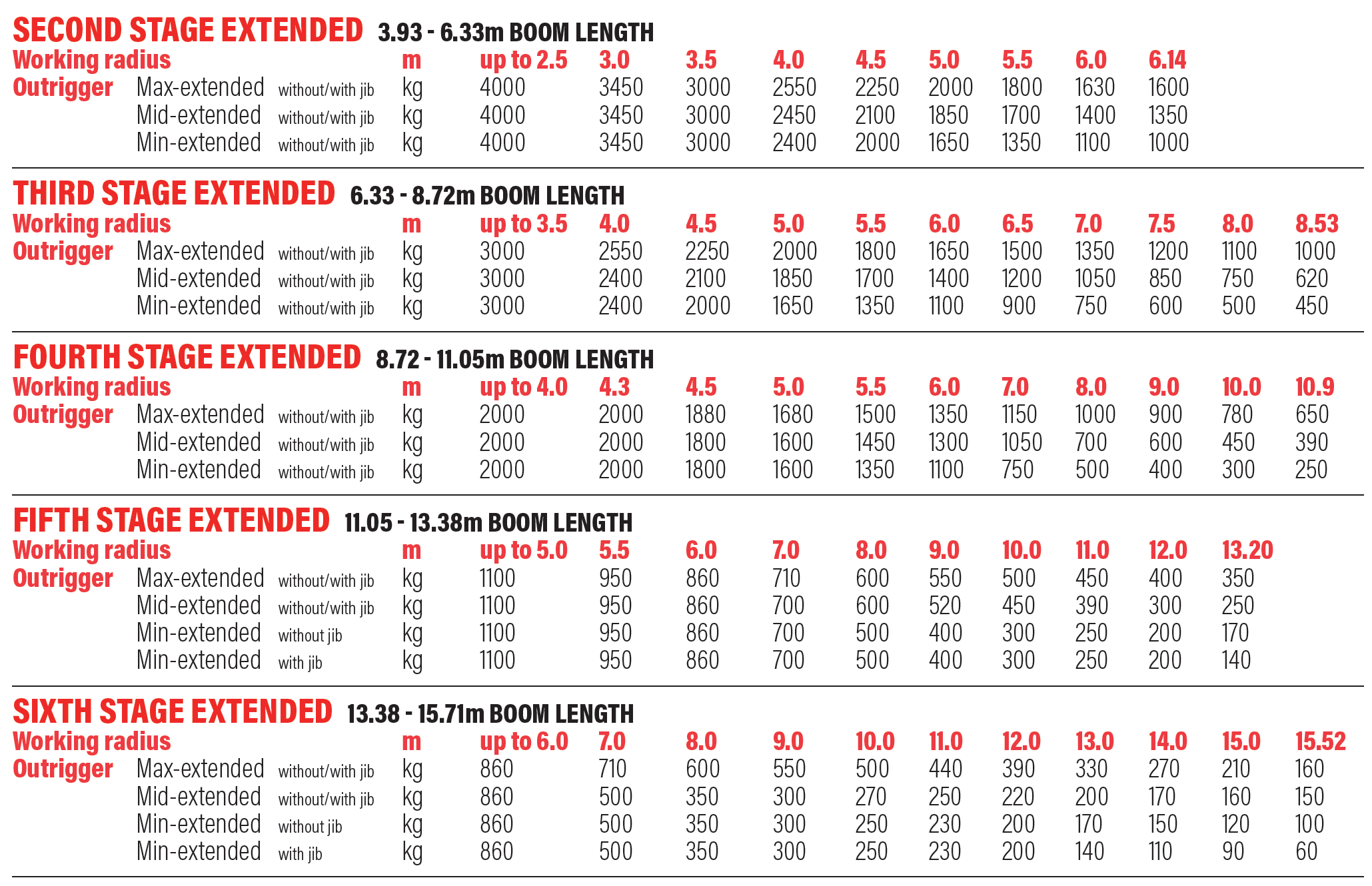

Main Boom Rated Loads

Fall Stages

Outrigger Dimensions

Outrigger Min-Mid-Max

Hydraulic Jib Rated Loads Table

Single Line Hook Rated Loads

Searcher Hook Rated Loads

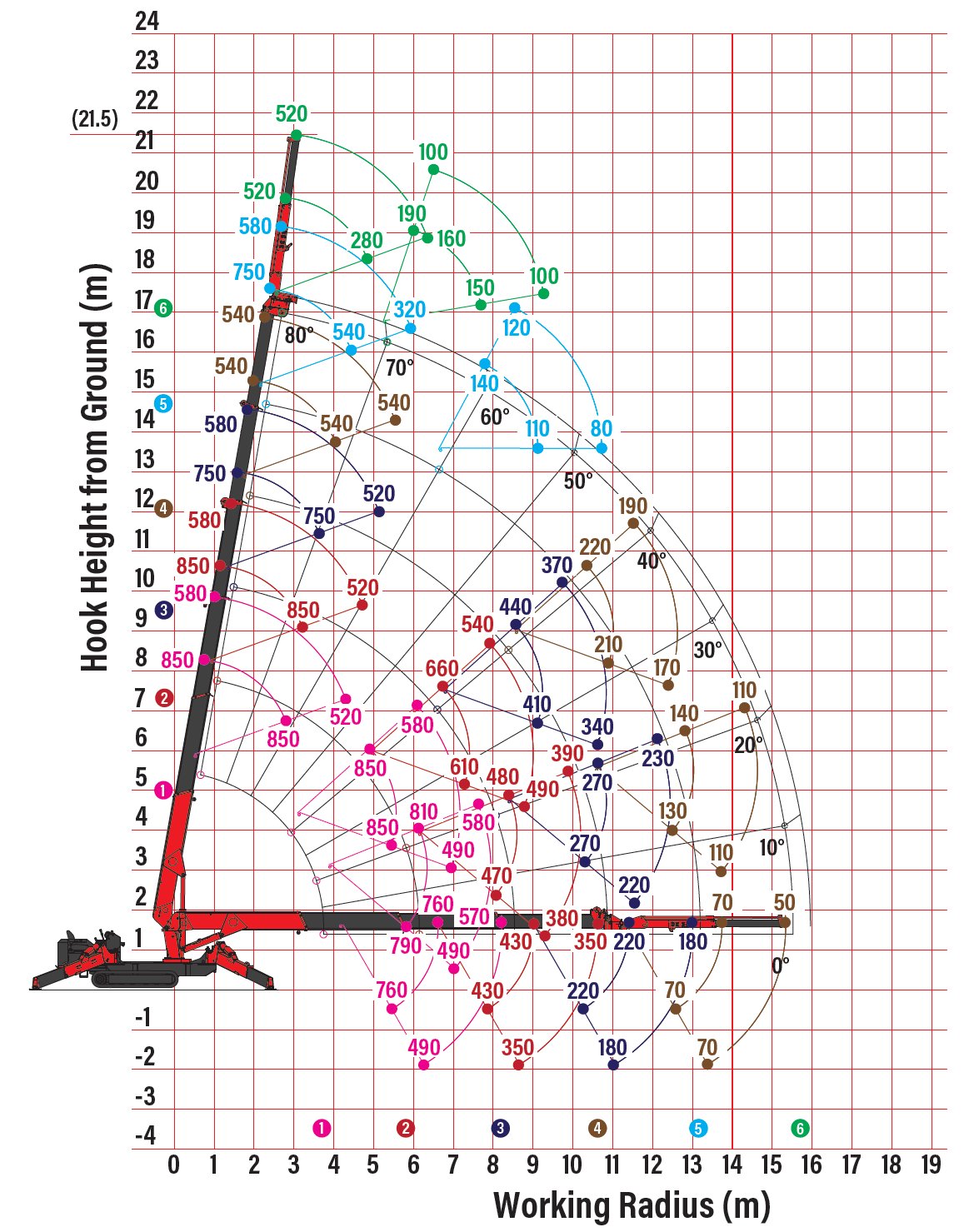

Stub Rated Loads

Rhino Hook Rated Loads

Attachments Dimensions

GGR Group - No.1 For Lifting Solutions

Our equipment is available for hire or purchase throughout the UK and beyond. We have three depots in Manchester, Thame and Glasgow, as well as our vast network of dealers across Europe and the UAE.
